Installing Rear Cast Iron Weights

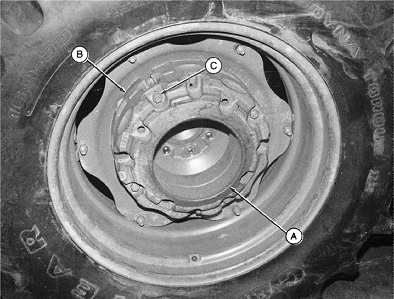

M47216


A-Additional Weight

B-Weight

C-Weight Holes



causym CAUTION: Optional cast iron weight weighs 50 kg (110 lb). Handle with care! Use appropriate equipment or have the job done by your John Deere dealer.

1. To install weights on wheel, it is necessary to remove wheel. (See "Wheels, Tires and Treads" section.)

2. Attach first weight to wheel disks.

3. To install additional weights (A), install bolts in previous weight (B). Rotate the added weight to align bolts with weight holes (C).

4. Tighten attaching bolts securely. Tighten again after a few hours service. Check tightness regularly.

AG,OUO1043,212 -19-08JUN00-1/1
