Adjust Front Axle Tread Width

IMPORTANT: DO NOT place jack under engine oil pan.

1. Jack up front end of tractor.

2. When making large tread adjustments it may be necessary to change the tie rod length (A) before or during axle adjustments. See Checking and Adjusting Toe-In for your axle type.

3. Remove nuts (B), cap screws (C), and bushings from front axle (2 on each side).

4. Slide axle knees (D) to desired position. Both sides should be adjusted to same spacing.

5. Reinstall cap screws (C), bushings, and nuts (B) on each side. Tighten cap screws to specification.

Specification

Adjustable Front Axle-to-Knee Cap Screw -Torque 150 N·m (110 lb-ft)

6. Set toe-in. See Checking and Adjusting Toe-In for your axle type.

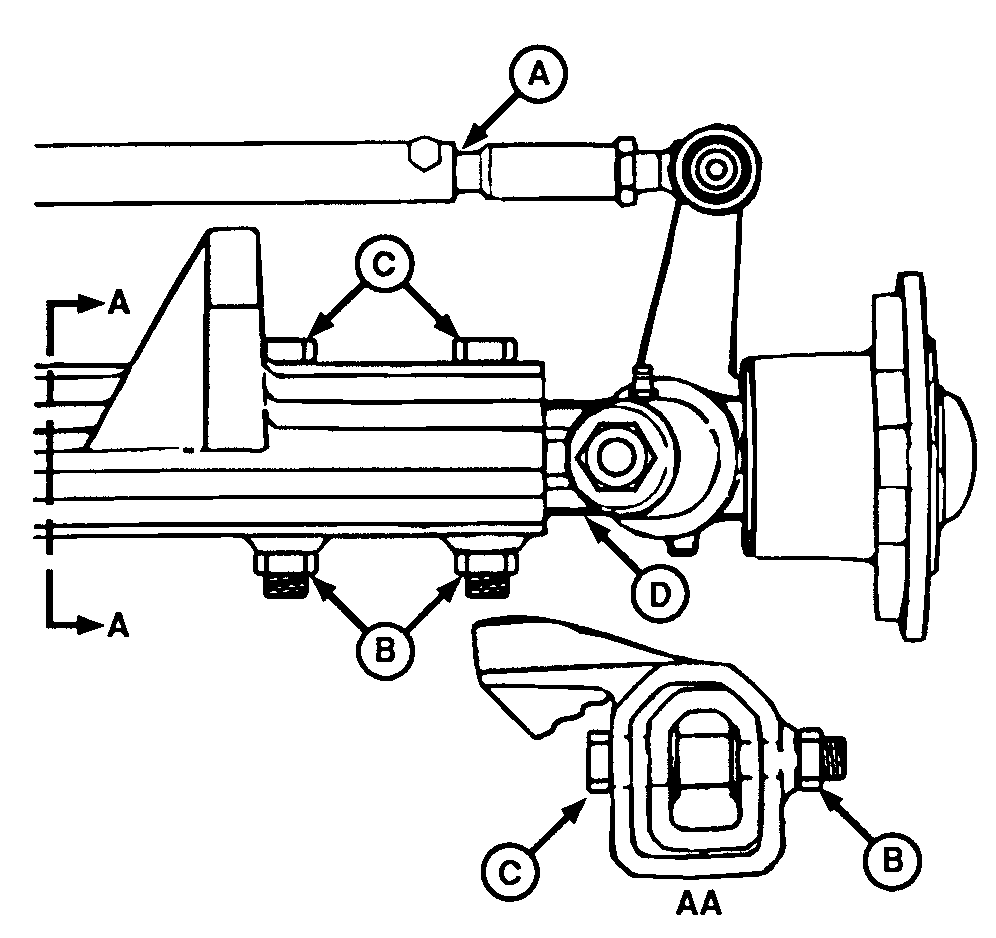

LV810


A-Tie Rod
B-Nut (4 used)
C-Front Axle Cap Screw (4 used)
D-Axle Knee

AG,OUO1043,213 -19-19NOV03-1/1
