Seat Adjustments
There are three seat adjustments available:
-
Move lever (A) and slide seat closer to or away from dash panel and controls.
-
While sitting on the seat, turn seat adjustment knob (B) to select desired height setting. The height setting selected is indicated by the number on the bottom of the knob.
-
Turn seat adjustment crank (C) clockwise or counterclockwise until the number displayed by the weight indicator (D) matches the current height setting of seat adjustment knob (B). Turn the seat adjustment crank clockwise to provide a firmer ride, counterclockwise for a softer ride.

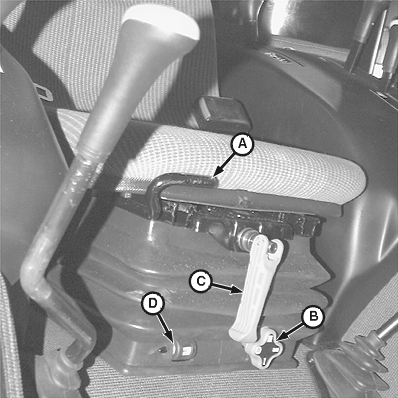

A-Seat Adjustment Lever-Fore or Aft
B-Seat Adjustment Knob-Lower or Raise
C-Seat Adjustment Crank-Weight Adjustment
D-Weight Indicator
|
|
