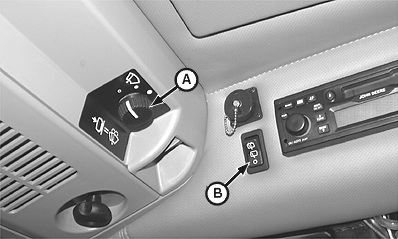

Operating Wiper(s)Rotate washer/wiper switch (A) to activate three windshield wiper positions:

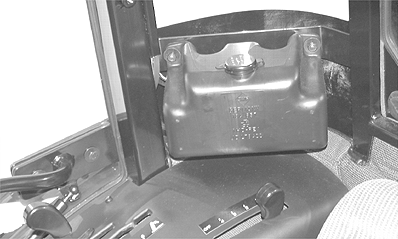

Depress washer/wiper switch (A) to operate windshield washer. If equipped with optional rear window wiper, push top part of rocker switch (B) to first ON position to engage rear wiper. Fully depress and hold top of rocker switch to operate washer. Push bottom of rocker switch to turn rear wiper off. Washer reservoir is at right-hand rear of tractor cab. Fill as necessary with non-freezing solvent to prevent damage to washer system in cold temperatures.
|
|
AG,OUO1043,229 -19-10SEP03-1/1 |
