Using Rockshaft Position Control

CAUTION: To prevent unexpected movement of rockshaft, place draft sensing control lever (B) in a full forward position before attaching an implement.

Place rockshaft draft sensing control lever (A) forward when you DO NOT want rockshaft to adjust automatically to draft load, such as attaching implement to tractor.

A-Rockshaft Draft Sensing Control Lever

AG,OUO1043,235 -19-11JUN00-1/2

Use position control lever (A) to control hitch movement and depth. Position control should be used for the following applications:

• TRANSPORT of implements and end of field turn-around. Position control lever should be moved fully rearward for transport for both load and non-load sensing usage.

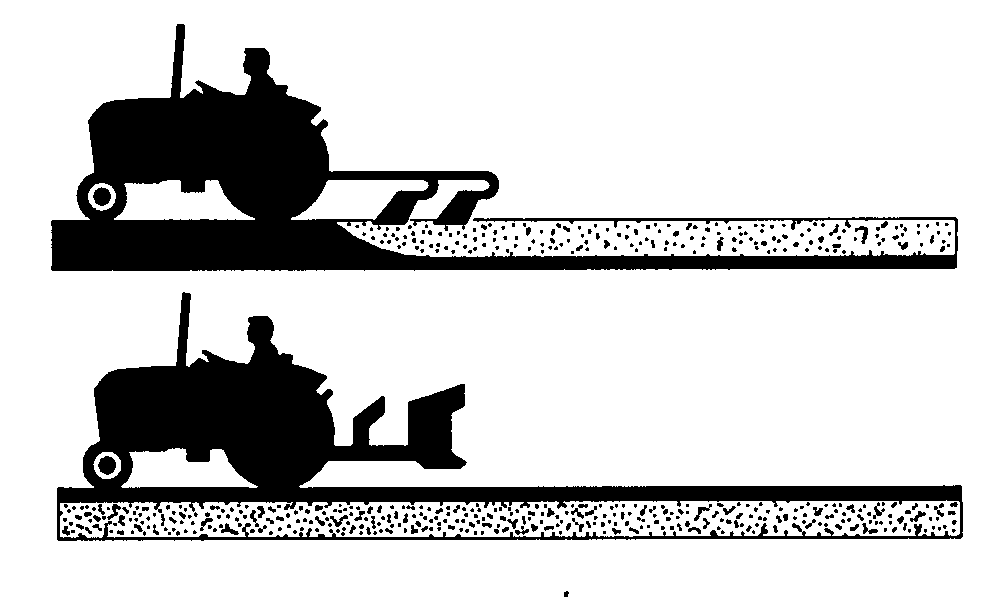

• CONSTANT DEPTH of implements on level terrain and for non-ground engaging implements such as spreaders or sprayers. Place position control lever at depth desired.

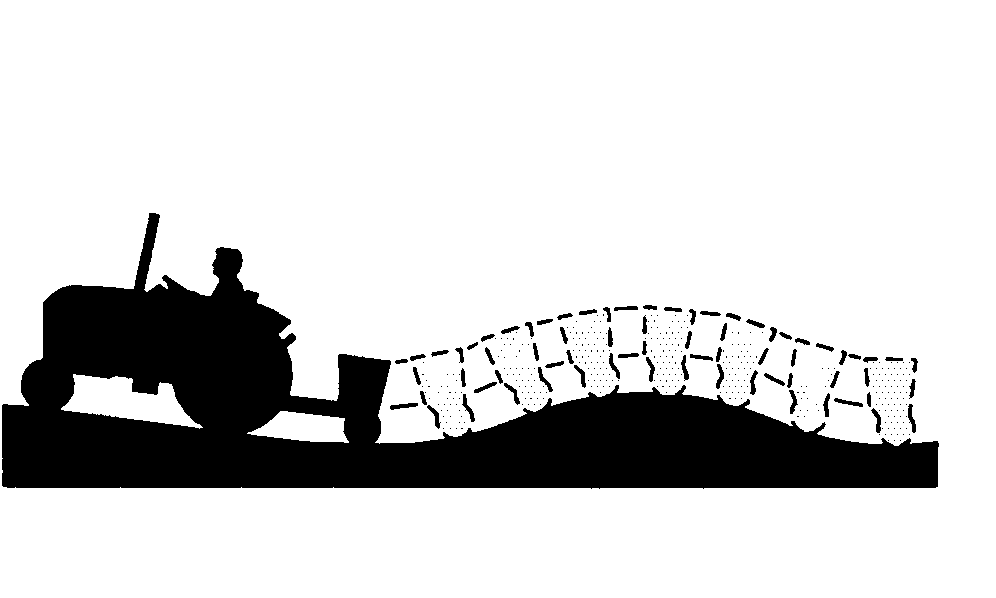

• FLOAT operation for implements with skids or depth gauge wheels designed to carry full implement weight. Push both levers all the way forward so implement can follow the ground contour.

NOTE: Lift links can be adjusted for lateral float. (See Lateral Float in this section.)

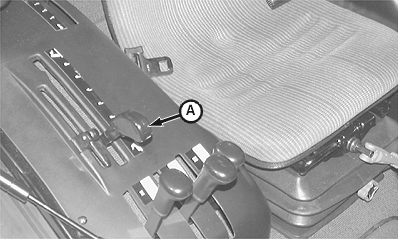

A-Rockshaft Position Control Lever
