Observe Service Intervals

Using hour meter (A) as a guide, perform all services at the hourly intervals indicated on the following pages. Keep a service record on charts provided in the Lubrication and Maintenance Record Charts section.

IMPORTANT: Recommended service intervals are for average conditions. Service MORE OFTEN if tractor is operated under adverse conditions.

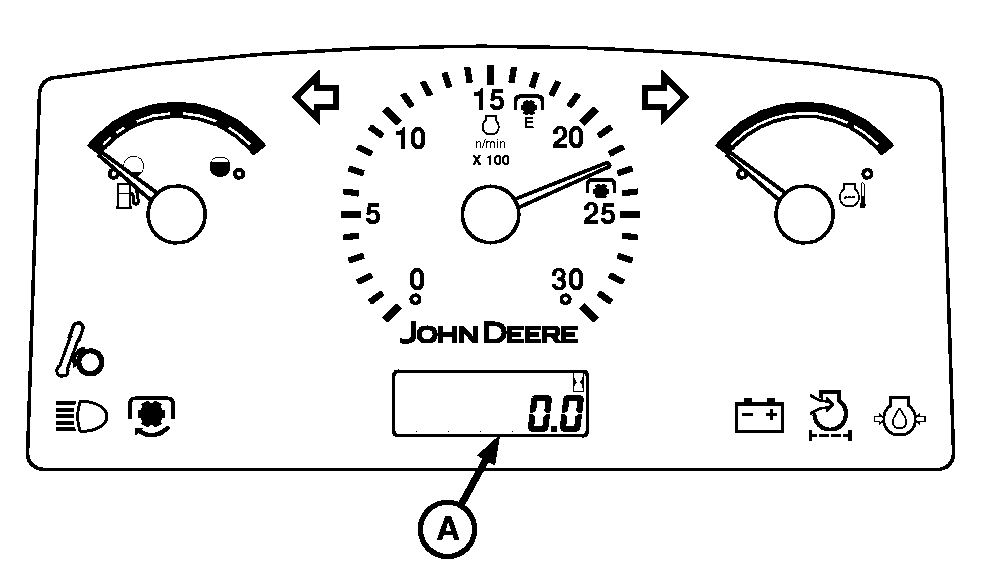

A-Hour Meter

LV9046

Late Model Tractor Shown; Early Model Tractor Similar

AG,OUO1043,238 -19-13NOV03-1/1
