Drain Water and Sediment from Fuel Tank and Fuel Filter

NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.

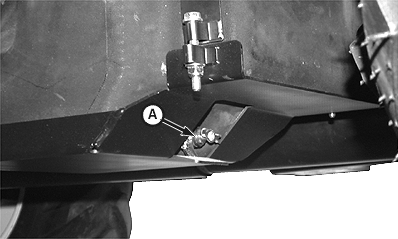

1. Open fuel tank fitting (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten fitting closed when clear fuel runs from fitting.

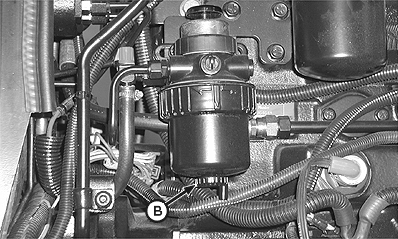

2. Open fuel filter drain (B) to bleed accumulated moisture and sediment from filter. Tighten drain when clear fuel runs from drain.

A-Fuel Tank Fitting
B-Fuel Filter Drain

AG,OUO1043,241 -19-12JUN00-1/1
