Lubricate Front Axle Pivot Pin

Apply several shots of multipurpose grease to front pivot lube fitting (A).

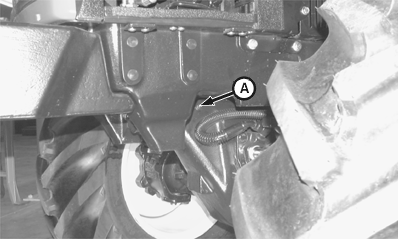

MFWD Axle: Lube fitting is located on rear, right-hand side of pivot pin casting.

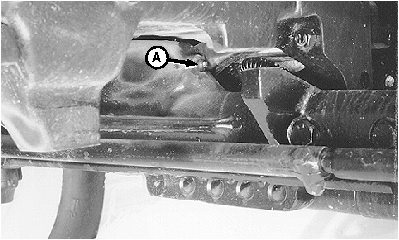

Adjustable Front Axle: Lube fitting is located on front, left-hand side of pivot pin casting.

See Fuels, Lubricants and Coolant section for grease specifications.

A- Front Pivot Lube Fitting

AG,OUO1043,245 -19-12JUN00-1/1
