Lubricate Steering Cylinder Ends and Steering Spindles-Adjustable Front Axle

On tractors equipped with adjustable front axle, apply several shots of general purpose grease (see Fuels, Lubricants and Coolant section) to steering cylinder Zerk Fittings (A, B, and C).


A-Steering Cylinder Zerk Fitting (Left-Hand Side)
B-Steering Cylinder Zerk Fitting (Right-Hand Side) (2 used)
C-Steering Spindle Zerk Fitting (2 used)

LV1552

Cylinder-L.H. Side

LV1553

Cylinder-R.H. Side

LV1546

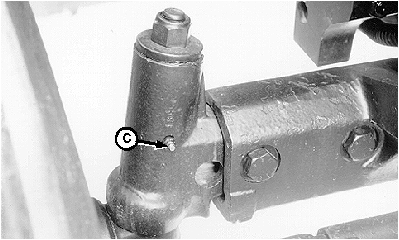

Steering Spindle
