Power Beyond Valve Operation-If Equipped

IMPORTANT: If implement is not connected to the power beyond valve, damage to the implement's hydraulic motor will result.

1. Remove dust plugs (A) from quick disconnect couplers.

2. Connect the hydraulic hose from implement motor marked IN to the quick disconnect coupler (E) in port stamped MP (B) for pressure or OUT on power beyond valve.

3. Connect the hydraulic hose from implement motor marked OUT to the quick disconnect coupler (E) in port stamped MT (C) for return or IN on power beyond valve.

4. Lever (D) on top of power beyond valve regulates oil flow rate to the implement attached. Lever (D) is calibrated from (0 to 9).

  • The number 0 indicates OFF or no oil flow to the implement.

    NOTE: Flow rate to the power beyond valve will vary depending on engine RPM.

  • The number 9 indicates maximum oil flow to the implement.

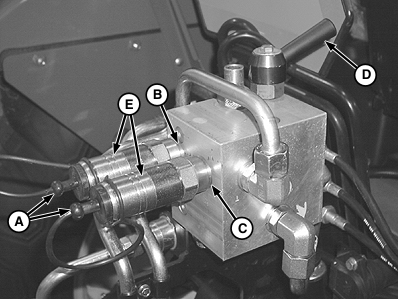

LV8786

Late Model Tractor Shown; Early Model Tractor Similar


A-Dust Plug (2 used)
B-MP Port (Out)
C-MT Port (In)
D-Lever
E-Quick Disconnect Coupler (2 used)

AG,OUO1043,255 -19-13NOV03-1/1
