Check Hoses and Hose Clamps for Tightness

NOTE: Check all hoses for cracks which could cause leaks or possible failures. Replace as necessary.

Check the following systems hose clamps for tightness:

    AG,OUO1043,257 -19-13JUN00-1/6

    • Air Cleaner to engine intake or turbocharger

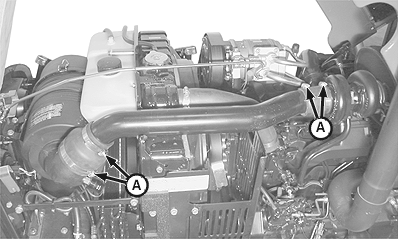

      A-Air Cleaner Hose Clamps

      LV5137

      5520N Shown

      LV5512

      5420N Shown, 5320N Similar

    AG,OUO1043,257 -19-13JUN00-2/6

      • Engine Cooling


        A-Radiator Hose Clamp (4 used)

      LV5138

      Radiator Top Hose-5520N Shown

      LV5134

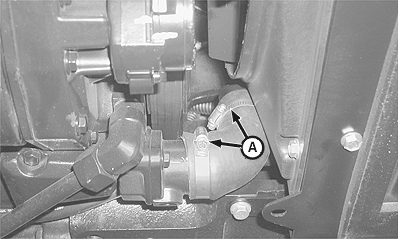

      Radiator Bottom Hose-5520N Shown

    AG,OUO1043,257 -19-13JUN00-3/6

        • Hydraulics

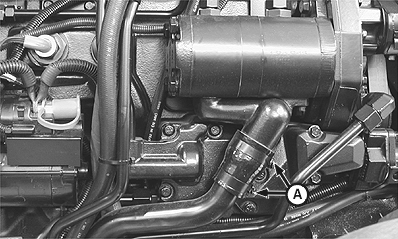

          A-Hydraulic Pump Hose Clamp (2 used)

      LV5020

    AG,OUO1043,257 -19-13JUN00-4/6

            NOTE: Remove left rear tire and access panel to access fuel tank hoses and clamps.

          • Fuel

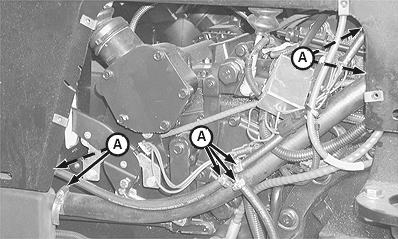

            A-Fuel System Hose Clamp (9 used)

      LV5133

      Cab Tractor Shown

      LV5136

    AG,OUO1043,257 -19-13JUN00-5/6

              NOTE: Remove left crop guard to access heater system hose clamps.

            • Air Conditioning and Heater (Cab)


            A-Heater System Hose Clamp (6 used)

      LV5135
