Change Transmission-Hydraulic Oil and Filter

NOTE: The approximate transmission-hydraulic system oil capacity is 41.8 L (11 gal).

2. Remove drain plug from transmission case or MFWD axle drop housing (A) and drain out oil.

3. Replace filter (B) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

4. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

Specification

5. Check oil level at dipstick (C) after filling, and again after operating for five minutes.

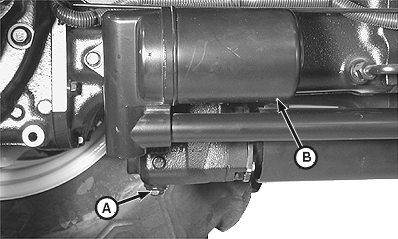

A-Drain Plug
B-Transmission-Hydraulic Oil Filter

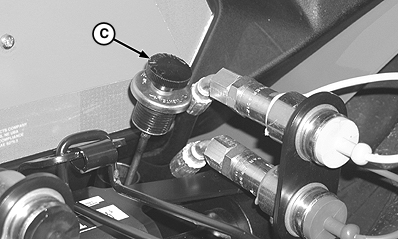

C-Dipstick

AG,OUO1043,258 -19-13NOV03-1/1
