Removing Side Screens

1. Raise the hood and secure the support rod.

2. Turn side screen latch levers (A).

3. Tilt screen outward and lift from lower mounting slots (B).


A-Side Screen Latch Levers

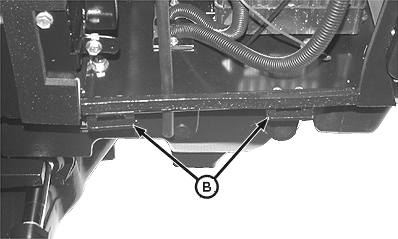

B-Lower Mounting Slots

LV8795
LV5024

AG,OUO1043,261 -19-10SEP03-1/1
