Replacing Fan/Alternator/AC Compressor Belt-5420N and 5520N

NOTE: Pulley and spring tensioner are not serviceable.

1. Remove right grille panel.

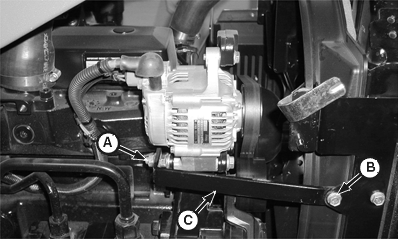

2. Remove nut (A), cap screw (B) and right radiator support bracket (C).

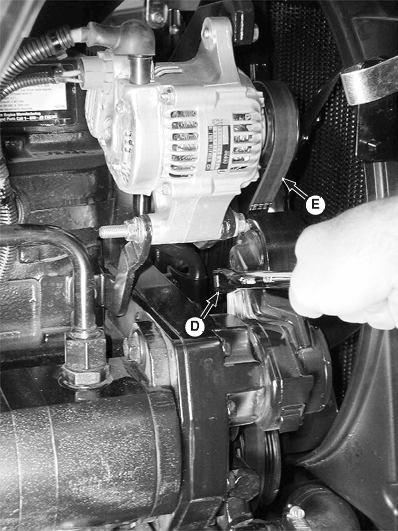

3. Release tension on belt using a 3/8 in. drive long-handle breaker bar (D). Remove belt (E) from alternator pulley over fan.

4. Install new belt in reverse order of removal.


A-Nut
B-Cap Screw
C-Radiator Support Bracket
D-Breaker Bar
E-A/C Belt

LV6048
LV6047

AG,OUO1043,269 -19-14JUN00-1/1
