Replacing A/C Compressor Belt (Cab-5320N)

1. Loosen nut (C) and jam nut (A).

2. Turn adjustment bolt (B) counterclockwise to loosen belt.

3. Remove belt from drive pulley.

4. Belt can be pulled around fan to remove.

5. Install new belt in reverse order of removal.

6. Adjust belt tension. (See Inspect and Adjust A/C Compressor Belt (Cab-5320N) in Service-250 Hours section.)

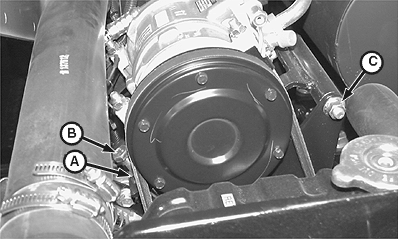

LV5029


A-Jam Nut
B-Adjustment Bolt
C-Nut

AG,OUO1043,270 -19-14JUN00-1/1
