Battery Access-Open Station Machines

Battery is located in front of the radiator.

To gain access:

1. Raise the hood.

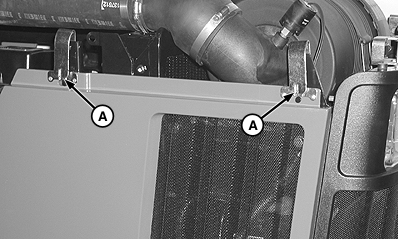

2. Rotate latches (A), and remove side screens from slots. (See Removing Side Screens in this section.)


A-Latches

LV8795

AG,OUO1043,276 -19-10SEP03-1/1
