Battery Access-Cab Machines

Battery is located under cab on right-hand side.

To gain access:

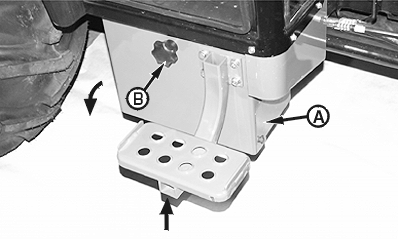

2. Lift up on step plate, and pull top of panel (A) away from battery box and lower panel.

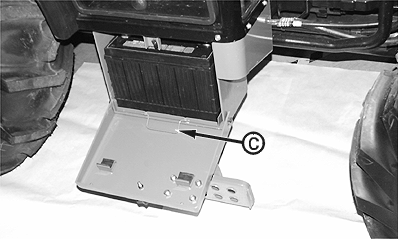

3. Pull on handle (C) to slide out battery tray and battery.

A-Panel
B-Knob
C-Handle

AG,OUO1043,277 -19-15JUN00-1/1
