Connecting Starter Wiring

NOTE: Plastic terminal cover shown removed for clarity of photo.

5520N shown, 5320 similar.

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

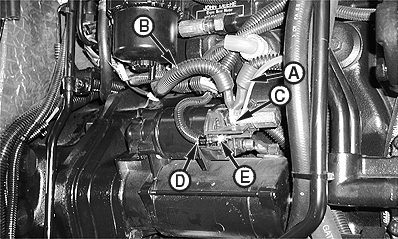

Connect battery-to-starter cable (A) and starter-to-fusible link cable (B) to large solenoid post (C). Connect the small white wire (D) to solenoid terminal (E).

A-Battery-to-Starter Cable
B-Starter-to-Fusible Link Cable
C-Large Solenoid Post
D-Small White Wire
E-Solenoid Terminal

AG,OUO1043,283 -19-16JUN00-1/1
