Locating Fuses

NOTE: Front key switch panel is removed for photo purposes.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating Color
10 Amp Red
15 Amp Blue
20 Amp Yellow
30 Amp Green



IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

LV1584

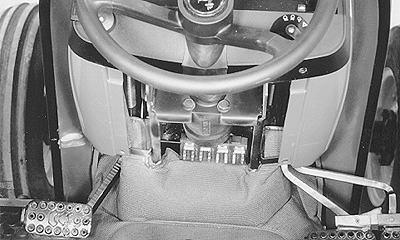

Fuses for Tractor

LV1585

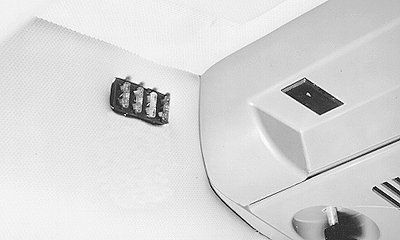

Fuses for Cab-Left-Hand Side Headliner
