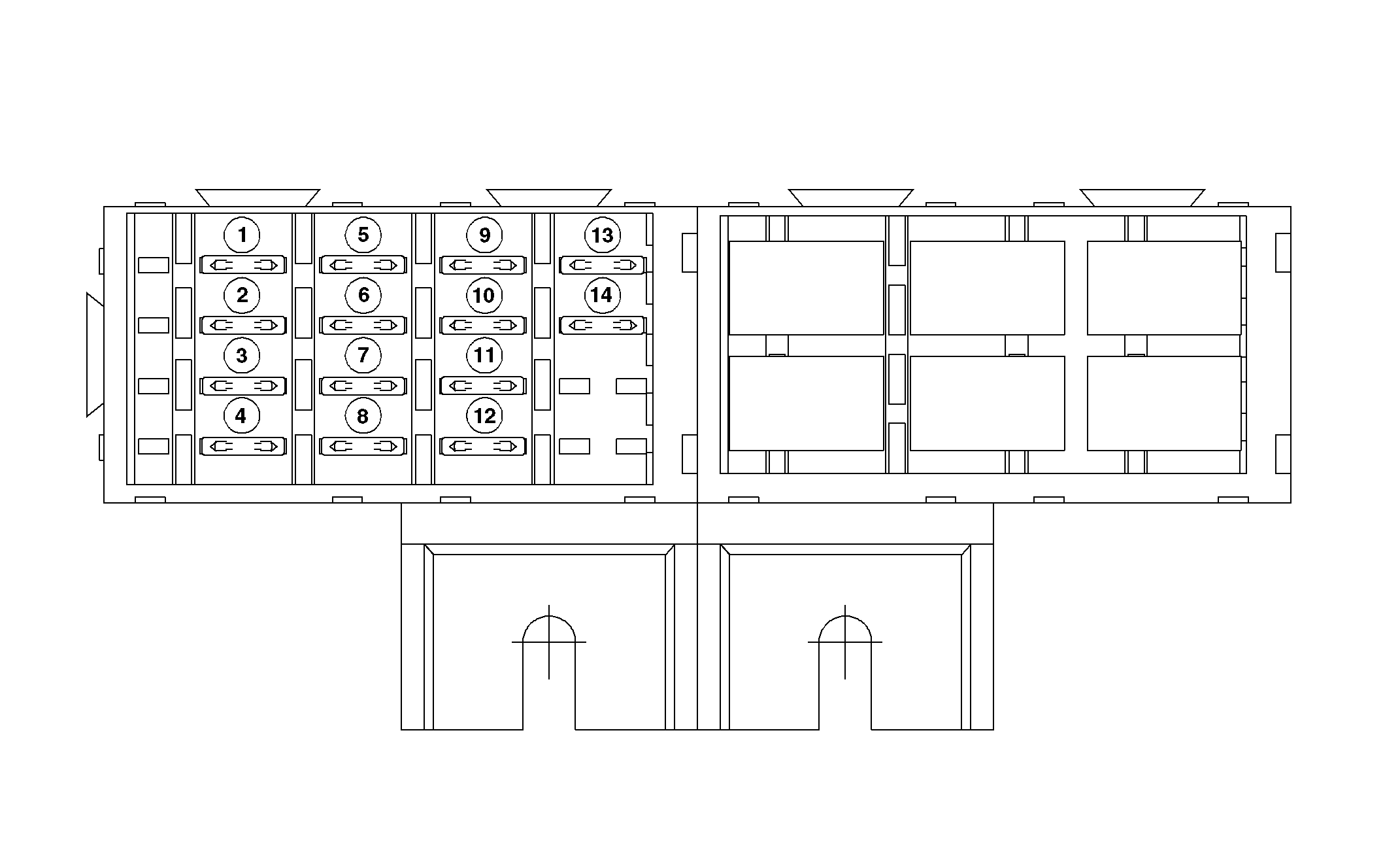

1-Fuse F1, 30-Amp: Key Switch
2-Fuse F5, 30-Amp: Light Switch
3-Fuse F9, 15-Amp: Low Beam Headlights
4-Fuse F12, 10-Amp: Tail Light
5-Fuse F2, 30-Amp: Accessory Relay
|
6-Fuse F6, 20-Amp: Left Turn Relay, Right Turn Relay
7-Fuse F10, 15-Amp: High Beam Headlights
8-Fuse F13, 10-Amp: Alternator Excitation, Instrument Cluster, Seat Switch
|
9-Fuse F3, 10-Amp: Instrument Cluster
10-Fuse F7, 20-Amp: Work Light Relay
11-Fuse F11, 10-Amp: Warning Light Relay, Instrument Cluster
12-Fuse F14, 20-Amp: Junction Block
|
13-Fuse F4, 10-Amp: Diagnostic Fuse (socket must be empty during normal operation)
14-Fuse F8, 20-Amp: Junction Block
|
