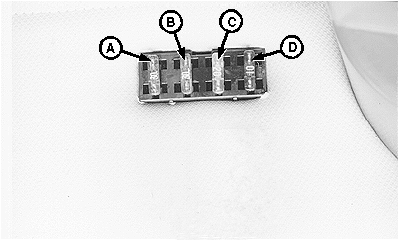

Fuse Size and Function-Cab


A-F13, 30-Amp: Blower Switch and Right Blower Motor
B-F14, 30-Amp: Flood Light Circuits
C-F15, 20-Amp: Left Blower Motor
D-F16, 10-Amp: Used on Early Model Tractors to Support A/C Compressor Clutch Coil Circuit

LV1586

AG,OUO1043,287 -19-13NOV03-1/1
