Replace Warning Light Bulb-Cab

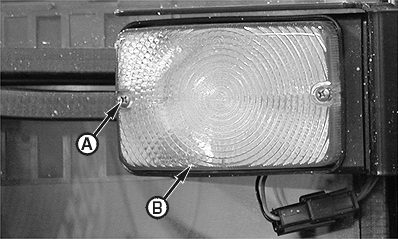

NOTE: Bulb replacement procedures for front and rear warning lights are the same. Front left-hand warning light shown.

1. Remove screws (A) and warning light lens (B).

2. Push and twist bulb to release from socket.

3. Replace bulb.

4. Install lens and screws.

A-Screw (2 used)
B-Warning Light Lens

AG,OUO1043,289 -19-16JUN00-1/1
