Replace Tail/Turn Signal Light Bulb-Cab

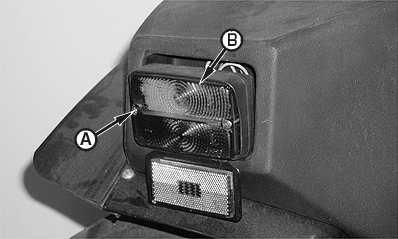

1. Remove screws (A) and lens (B).

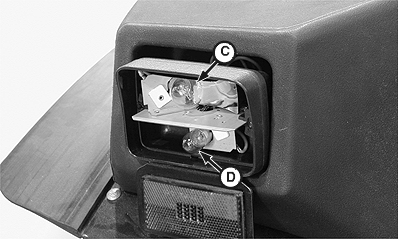

2. Push and twist warning light bulb (C) or tail light bulb (D) to release from socket.

3. Replace bulb as necessary.

4. Install lens and screws.


A-Screw (2 used)
B-Warning Light Lens
C-Warning Light Bulb
D-Tail Light Bulb

LV5059
LV5060

AG,OUO1043,295 -19-16JUN00-1/1
