Keep ROPS Installed Properly-Open Station

causym CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing roll-over protective structure (ROPS) (A) or frame (B), mounting bolts should be tightened to specification.

Specification

ROPS Mounting Cap Screw (C) -Torque 620 N·m (457 lb-ft)
ROPS Mounting Cap Screw (D) -Torque 320 N·m (236 lb-ft)
ROPS Mounting Cap Screw (E) -Torque 130 N·m (97 lb-ft)

Inspect ROPS mounting hardware every 250 hours for proper torque or replacement.

LV5063
LV775


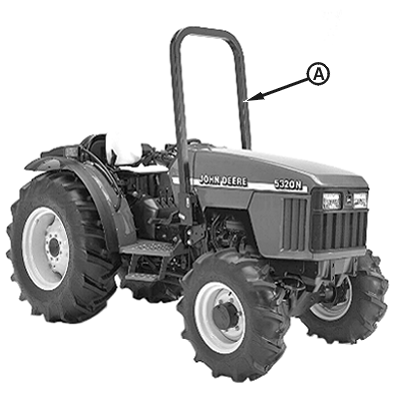

A-ROPS Crossbar
B-Frame
C-Mounting Cap Screw (4 used)
D-Mounting Cap Screw (2 used)
E-Mounting Cap Screw (2 used)
