Service Air Cleaner

Service air cleaner (A) as instructed in Service section. Service air cleaner more often if required. Air restriction indicator ON, loss of power and excessive smoke are indicators of a dirty element.

IMPORTANT: Check unloading valve (B) frequently. Empty as often as needed to keep it from filling with dust; air cleaner element will become plugged rapidly.

Primary and secondary elements should be replaced at least once a year or after the primary element has been cleaned six times. (See Removing Air Cleaner Elements in Service section.)

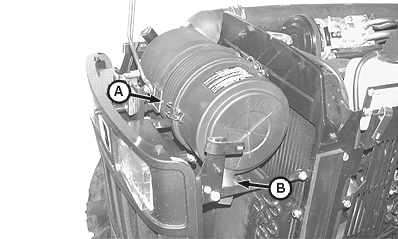

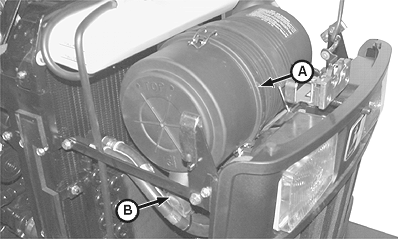

A-Air Cleaner
B-Unloading Valve

AG,OUO1043,306 -19-20JUN00-1/1
