Clean Cab Air Filters

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

1. Unscrew knobs (B).

2. Pull on knobs to remove recirculation vent and filter assembly (A).

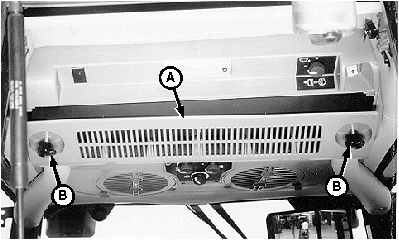

A-Recirculation Vent and Filter Assembly
B-Knob (2 used)

AG,OUO1043,309 -19-20JUN00-1/2

4. Remove recirculation air filter (A). Clean filter under running water and dry with compressed air. Cleaning filter may be required more often in dusty conditions.

5. Remove fresh air intake filter (C). Clean filter with compressed air. Inspect filter for damage. Replace as necessary

6. Install filters and screws.

7. Install recirculation vent and filter assembly and tighten knobs.

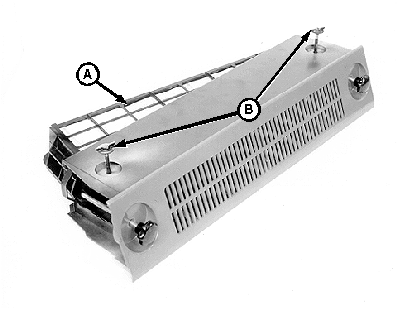

A-Recirculation Air Filter
B-Screw (2 used)

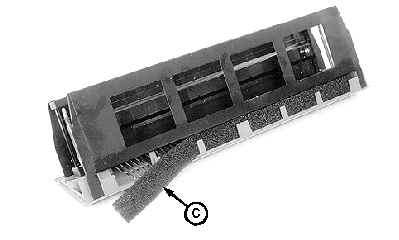

C-Fresh Air Intake Filter

AG,OUO1043,309 -19-20JUN00-2/2
