Adjust 540E PTO Throttle Limiter-Open Station

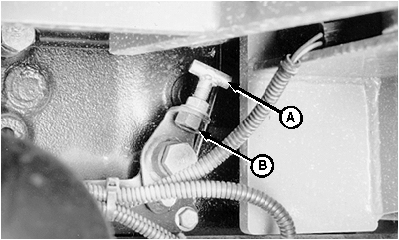

Engine rpm should be 1850-1900 with hand throttle lever forward and no load. Adjust T-bolt (A) under foot throttle and tighten jam nut (B).

Load engine to 1700 rpm to obtain 540 PTO rpm in 540E position.

A-T-Bolt
B-Jam Nut

AG,OUO1043,310 -19-21JUN00-1/1
