Opening Hood

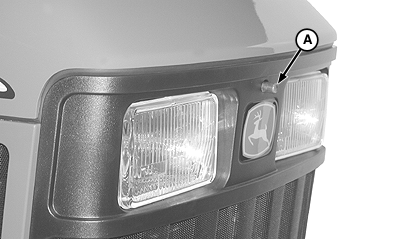

1. Push hood latch release (A) in to unlock hood.

2. Raise hood and unlatch the support rod (B).

3. Insert the hood support rod (B) into the hood latch (C) to hold hood in raised position.


A-Hood Latch Release
B-Hood Support Rod
C-Hood Latch

LV8793
LV8794

AG,OUO1043,312 -19-10SEP03-1/1
