Tread Settings-Two-Position Rear Wheels-Early Model Tractor

Wheel tread can be adjusted by exchanging the wheels from side to side.

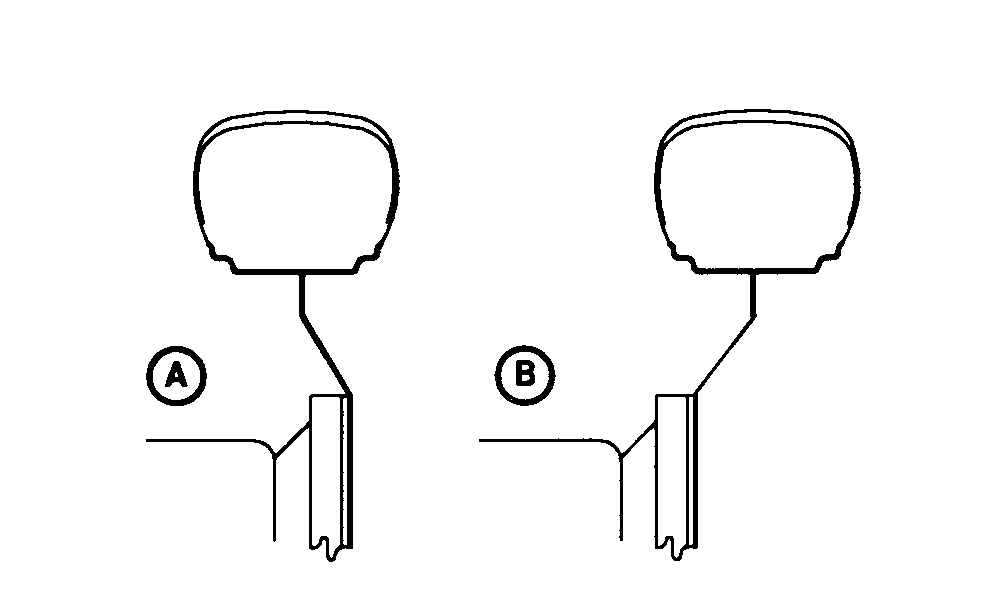

The relationship of the wheels are as shown in the diagram.

IMPORTANT: After setting wheel spacing, tighten rear wheel disk-to-hub to specification. Drive tractor 100 m (109 yd) and tighten again.

Specification

Rear Steel Wheel Disk-to-Hub M16 Bolts -Torque 175 N·m (130 lb-ft)
Rear Cast Wheel Disk-to-Hub M16 Bolts -Torque 225 N·m (166 lb-ft)

TWO-POSITION REAR WHEELS
TREAD WIDTH
Centerline-to-Centerline
Tire Size Wheel Position A Wheel Position B
13.5-16.1 981 (38.6) 1331 (52.4)
18.4-16.1 1089.2 (42.9) 1222.8 (48.1)
