Observe Rear Wheel Tread Width Limitations
IMPORTANT:

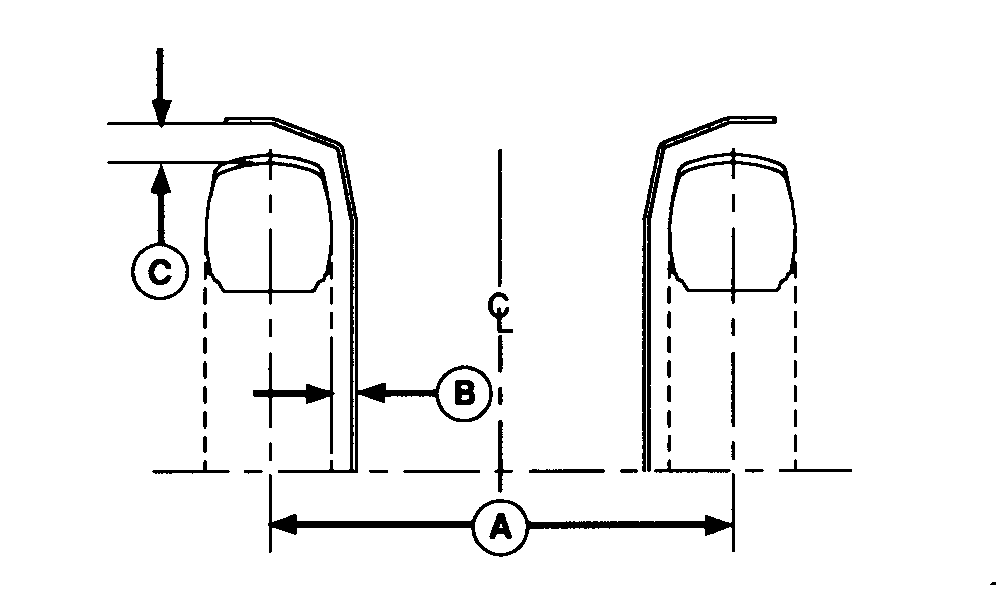

When changing rear tires, check clearance between tires and fenders. See chart for minimum/maximum width, inside tire-to-fender clearance and top clearance.
|
|
| |
Min.-Max. Width (A) |
Min.-Max. Inside Clearance (B) |
Min. Top Clearance (C) |
| Rear Tire Size |
mm |
(in.) |
mm |
(in.) |
mm |
(in.) |
| 12.4-24 |
904.4-1511.8 |
(35.6-59.5) |
17.7-321.4 |
(0.70-12.7) |
142 |
(5.59) |
| 13.5-16.1 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 13.6-24 |
1003.4-1511.8 |
(39.5-59.5) |
50.7-304.9 |
(2.0-12.0) |
115 |
(4.53) |
| 14.9-24 |
1003.4-1511.8 |
(39.5-59.5) |
32.7-286.9 |
(1.29-11.3) |
85.5 |
(3.37) |
| 16.9-24 |
1108.4-1511.8 |
(43.6-59.5) |
57.7-259.4 |
(2.27-10.2) |
50 |
(1.97) |
| 16.9-28 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 16.9-30 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 13.6-28 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 14.9-28 |
1003.4-1511.8 |
(39.5-59.5) |
32.7-286.9 |
(1.29-11.3) |
35 |
(1.38) |
| 15.5-38 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 18.4-16.1 |
1089.2-1222.8 |
(42.9-48.1) |
27.6-94.4 |
(1.09-3.7) |
147.5 |
(5.81) |
| 18.4-30 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 21.5L-16.1 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| 22.5LL-16.1 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
AG,OUO1043,330 -19-10SEP03-1/1
|
|
