Tread Settings-Two-Position MFWD Wheels-Early Model Tractor

Wheel tread on MFWD axle can be adjusted by exchanging the wheels from side-to-side.

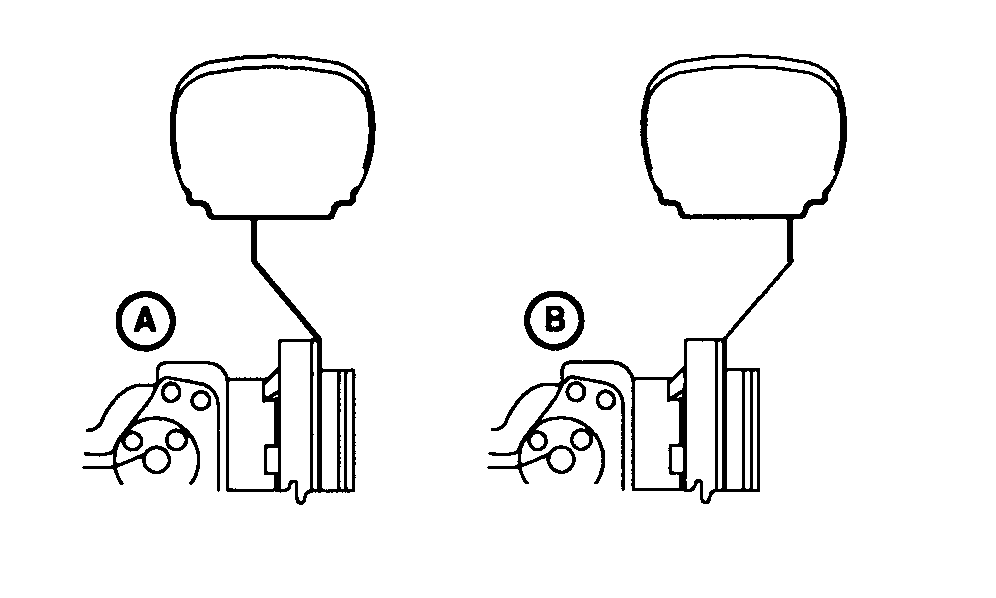

The relationship of the wheels are as shown in the diagrams.

IMPORTANT: After setting wheel spacing, tighten MFWD wheel disk-to-hub nuts to specification. Drive tractor 100 m (109 yd) and tighten again.

Specification

MFWD Wheel Disk-to-Hub Nuts -Torque 300 N·m (220 lb-ft)

LV809

TWO-POSITION MFWD WHEELS
TREAD WIDTH
Centerline-to-Centerline
Tire Size Wheel Position
  A B
10.5/80-18 1100 mm (43.3 in.) 1170 mm (46.0 in.)
7.5-20 1068 mm (42.0 in.) 1201 mm (47.3 in.)
7.2-16 1074 mm (42.3 in.) 1203 mm (47.4 in.)
8.3-16 1072 mm (42.2 in.) 1201 mm (47.3 in.)
9.5-16 1093 mm (43.0 in.) 1179 mm (46.4 in.)



AG,OUO1043,332 -19-13NOV03-1/1
