Tighten Bolts-Rear Axle
Tighten bolts in the following locations to specifications:
Specification
|
Rear Wheel Rim-to-Disk Bolts
-Torque
|
245 N·m (180 lb-ft)
|
|
Rear Steel Wheel Disk-to-Hub M16 Bolts
-Torque
|
175 N·m (130 lb-ft)
|
|
Rear Cast Wheel Disk-to-Hub M16 Bolts
-Torque
|
225 N·m (166 lb-ft)
|
|
Rear Steel Wheel Disk-to-Hub M20 Bolts
-Torque
|
600 N·m (445 lb-ft)
|

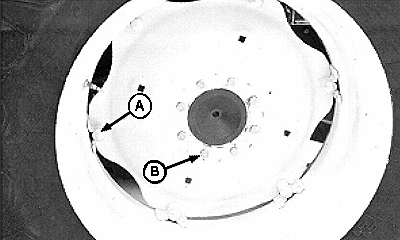

A-Rear Wheel Rim-to-Disk Bolts
B-Rear Wheel Disk-to-Hub Bolts
|
