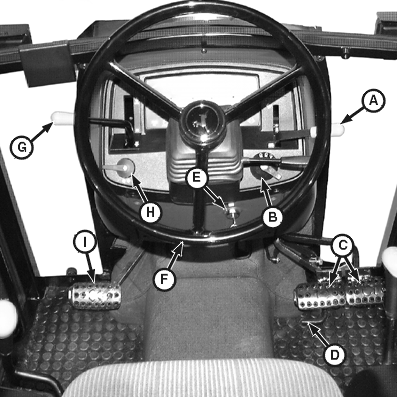

Tractor Controls-Cab
A-Hand Throttle
B-Light Switch
C-Brake Pedals
D-Foot Throttle
E-Key Switch
F-Steering Wheel
G-Forward/Reverse Selector Lever
H-Turn Signal Switch
I-Clutch Pedal
J-Differential Lock Pedal
K-Gear Shift Lever
L-PTO 540/540E Speed Shift Lever
M-Rockshaft Draft Control Lever
N-Rockshaft Position Control Lever
O-Rockshaft Rate-of-Drop Valve
P-Selective Control Valve Lever II
Q-Selective Control Valve Lever I
R-Selective Control Valve Lever III (Optional)
S-Range Shift Lever
T-Park Brake Lever
U-PTO Engagement Lever
V-Mechanical Front Wheel Drive Lever (Optional)
|
