Using Flood Lights-Cab
 CAUTION:
When operating on a road, move light switch to either bright or dim headlight positions (A). Never use flood lights when transporting. Clear, bright lights at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.
NOTE:
Front and rear flood lights adjust freely by hand: up, down, left or right.
Both front and rear flood lights (D and C) are switched on by "Flood Light" switch position (B).
A-Bright or Dim Headlight Positions
B-Flood Light Position

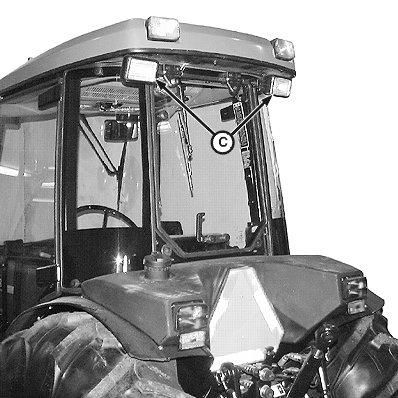

C-Rear Flood Lights

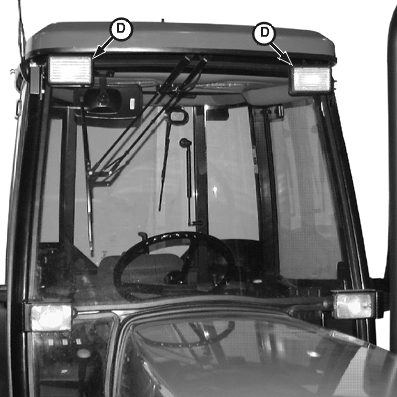

D-Front Flood Lights
|
