Using Dome Light

Dome light switch (A) positions:

  • Forward-Light comes ON when either door is opened and turns OFF when both doors are closed.
  • Middle-Light OFF.
  • Rearward-Light ON.

IMPORTANT: Before exiting cab, make sure dome light is in middle or forward position. Failure to do so will cause battery to lose its charge. Shut cab doors.

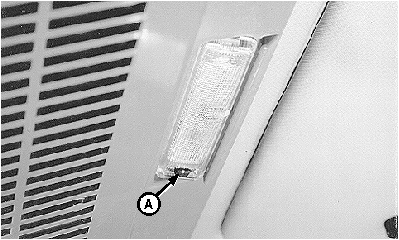

A-Dome Light

LV1530

LV,5010OS,H -19-28MAY99-1/1
