Clean and Check Battery

To access battery, see procedure in Service section.

Wipe battery with a damp cloth. Clean and tighten connections if needed. Check fluid level in each cell, fill to bottom of filler neck with clean mineral-free water. (See Servicing Battery in Service section.)

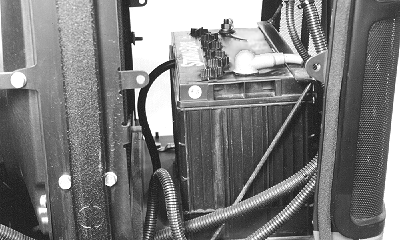

LV1767

Open Station (In Front of Radiator)

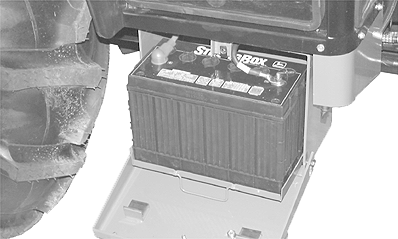

LV4969

Cab (Under Right-Hand Cab Door)

LV,5010S50,B -19-09SEP97-1/1
