Adjusting Headlights

1. Open the hood.

2. Turn screws (A and B) counterclockwise to lower beam or clockwise to raise beam.

3. To adjust beam in toward center of tractor, turn inner screws (B and C) counterclockwise and outer screw (A) clockwise an equal number of turns on each screw.

4. To adjust beam out from center of tractor, turn outer screw (A) counterclockwise and inner screws (B and C) clockwise an equal number of turns on each screw.

NOTE: Clips (D) need not be removed for adjustment.

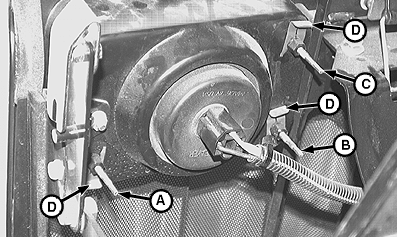

LV3029

Left-Hand Side Headlight Shown


A-Headlight Mounting Screw
B-Headlight Mounting Screw
C-Headlight Mounting Screw
D-Clips

LV,5400NSV,A13A -19-10AUG99-1/1
