Tighten Bolts-Adjustable Front Axle
Tighten bolts in the following locations to specifications:
Specification
|
Adjustable Front Axle-to-Knee Bolts
-Torque
|
150 N·m (110 lb-ft)
|
|
Adjustable Front Axle Wheel Disk-to-Flange Bolts
-Torque
|
175 N·m (130 lb-ft)
|

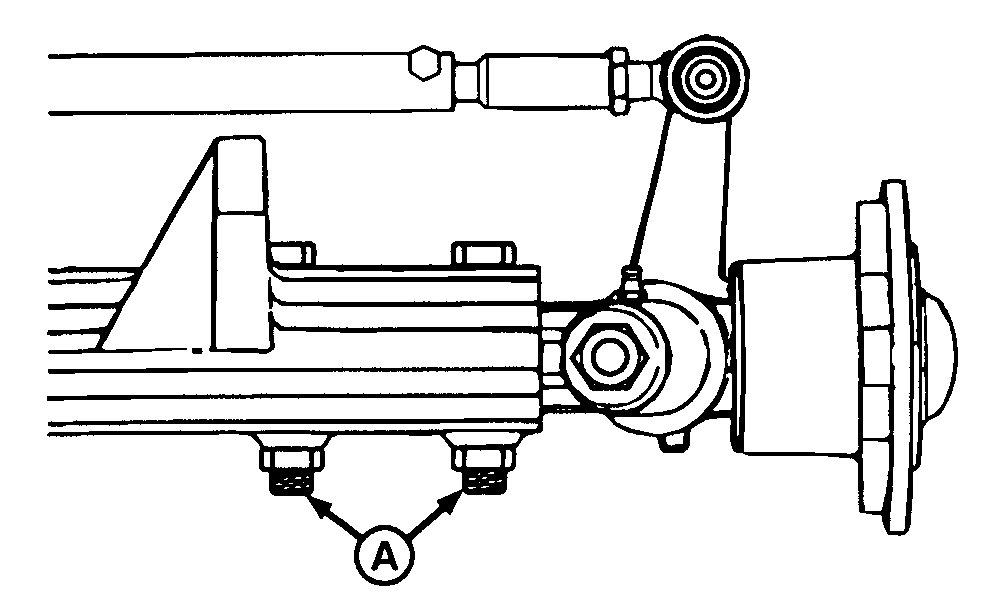

A-Adjustable Front Axle-to-Knee Bolts
B-Adjustable Front Axle Wheel Disk-to-Flange Bolts
|
