Move turn signal lever (E) down to indicate left-hand turn or up for right-hand turn. Indicator lights (D) will flash to signal turn direction.
When lever is down, the front facing warning/turn signal light (A), rear facing warning/turn signal light (B), and tail/turn signal light (C) on the left-hand side will flash while the right-hand side lights glow steady. When turn signal lever is up, the front facing warning/turn signal light (A), rear facing warning/turn signal light (B), and tail/turn signal light (C) on the right-hand side will flash while the left-hand side lights glow steady.
NOTE:
Be sure to manually return lever to center position after turning.
A-Front Warning/Turn Signal Light

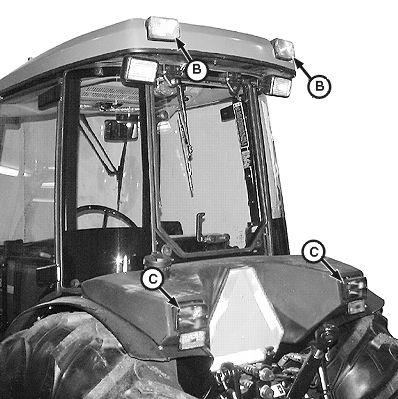

B-Rear Warning/Turn Signal Light
C-Tail/Turn Signal Light

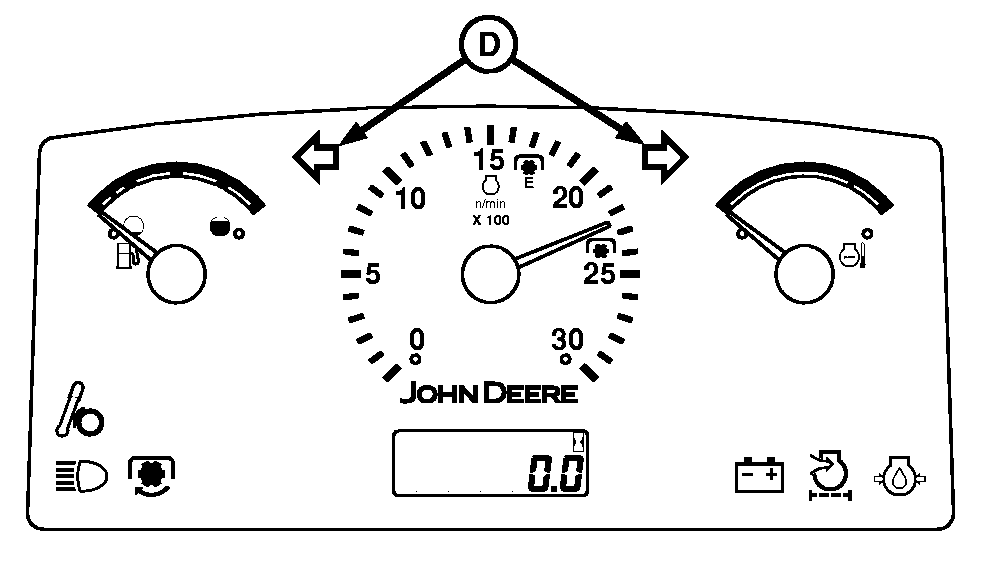

D-Dash Indicator Lights

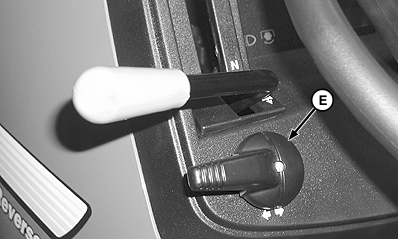

E-Turn Signal Lever
|
Late Model Tractor Shown; Early Model Tractor Similar
|
