Tread Settings-Multi-Position Rear Wheels-Late Model Tractor

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

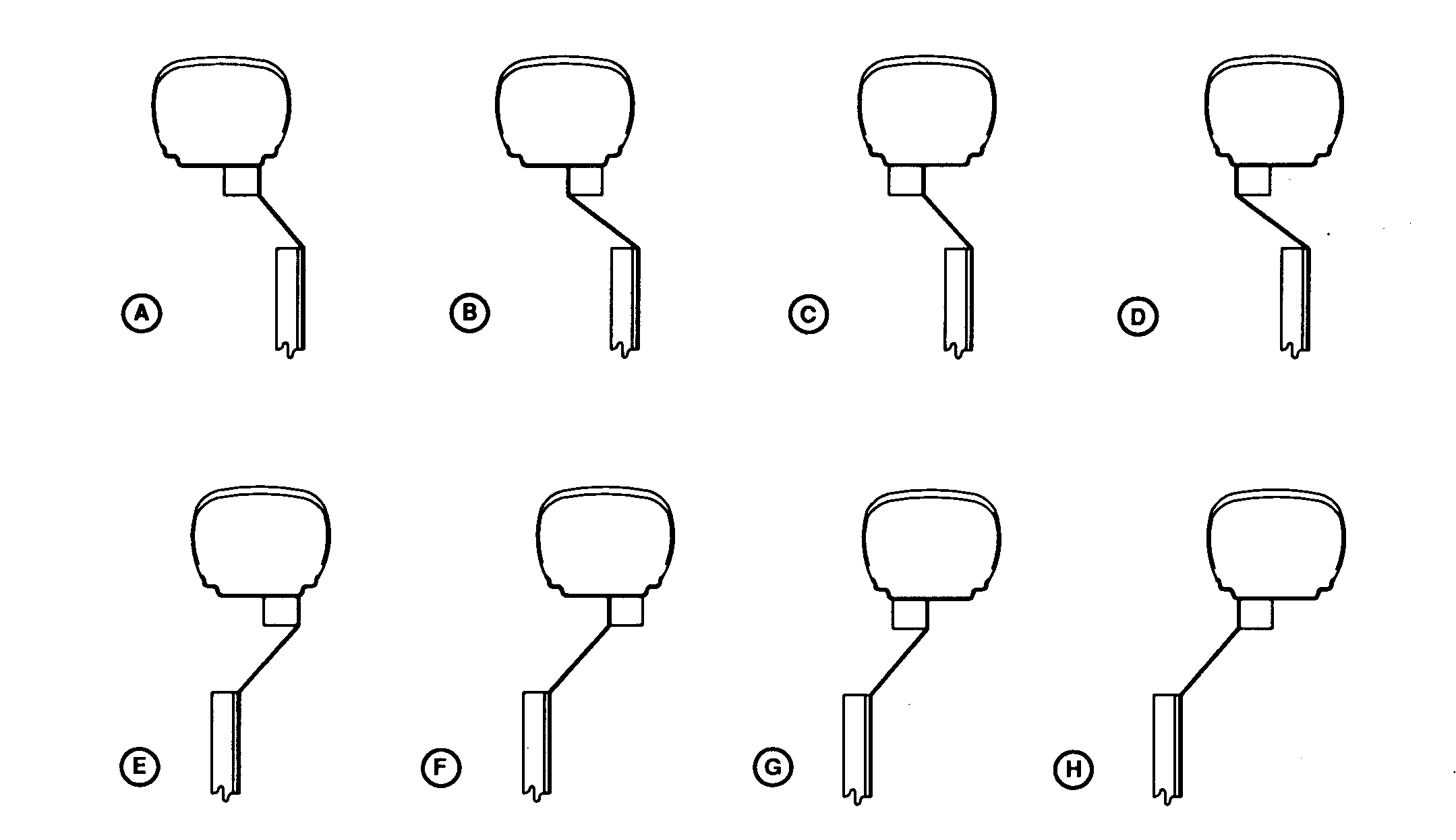

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams.

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

OUO1004,000138F -19-20NOV03-1/3

LV615

OUO1004,000138F -19-20NOV03-2/3

IMPORTANT: After setting wheel spacing, tighten rear wheel disk-to-hub and rear wheel rim-to-disk bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Specification

Rear Wheel Rim-to-Disk Bolts -Torque 245 N·m (180 lb-ft)
Rear Wheel Disk-to-Hub M20 Bolts -Torque 600 N·m (445 lb-ft)

MULTI-POSITION REAR WHEELS
TREAD WIDTH
Centerline-to-Centerline
  Diagram
Tire A B C D E F G H
12.4-24 794 mm (31.3 in.) 898 mm (35.4 in.) 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) 1294 mm (50.9 in.) 1392 mm (54.8 in.) 1497 mm (58.9 in.)
13.6-24 794 mm (31.3 in.) 898 mm (35.4 in.) 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) 1294 mm (50.9 in.) 1392 mm (54.8 in.) 1497 mm (58.9 in.)
14.9-24 794 mm (31.3 in.) 898 mm (35.4 in.) 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) 1294 mm (50.9 in.) 1392 mm (54.8 in.) 1497 mm (58.9 in.)
16.9-24 794 mm (31.3 in.) 898 mm (35.4 in.) 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) 1294 mm (50.9 in.) 1392 mm (54.8 in.) 1497 mm (58.9 in.)
14.9-28 794 mm (31.3 in.) 898 mm (35.4 in.) 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) 1294 mm (50.9 in.) 1392 mm (54.8 in.) 1497 mm (58.9 in.)

380/70-24 N/A N/A 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) ** ** **
380/70-28 N/A N/A 997 mm (39.3 in.) 1102 mm (43.4 in.) 1189 mm (46.8 in.) ** ** **
420/70-24 N/A N/A N/A 1102 mm (43.4 in.) 1189 mm (46.8 in.) ** ** **
420/70-28 N/A N/A N/A 1102 mm (43.4 in.) 1189 mm (46.8 in.) ** ** **
480/70-28 N/A N/A N/A 1102 mm (43.4 in.) ** ** ** **
** Tread positions not permitted in Europe due to exceeding maximum allowable vehicle width. Maximum allowable vehicle width for operation in Europe is 1665 mm (65.6 in.).



OUO1004,000138F -19-20NOV03-3/3
