Checking Belt Tensioner Spring Tension and Belt Wear (Automatic Tensioner)

NOTE: Depending on the application, the belt tensioner location or design varies. However the inspection procedure remains the same.

Belt drive systems equipped with automatic (spring) belt tensioners cannot be adjusted or repaired. The automatic belt tensioner is designed to maintain proper belt tension over the life of the belt. If tensioner spring tension is not within specification, replace tensioner assembly.


Checking Belt Wear

RG13744
RG13744-UN-11NOV04

Belt Tensioner

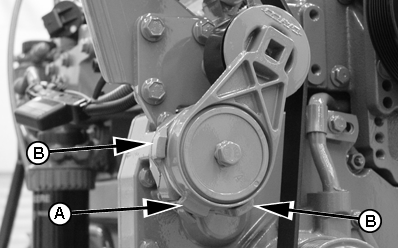

A - Cast Stop

B - Cast Stop

The belt tensioner is designed to operate within the limit of arm movement provided by the cast stops (A and B) when correct belt length and geometry is used.

Visually inspect cast stops (A and B) on belt tensioner assembly.

If the tensioner stop on swing arm (A) is hitting the fixed stop (B), check mounting brackets (alternator, belt tensioner, idler pulley, etc.) and the belt length. Replace belt as needed ( see REPLACING FAN AND ALTERNATOR BELTS in Service As Required Section).


Checking Tensioner Spring Tension

RG7977
RG7977-UN-14NOV97

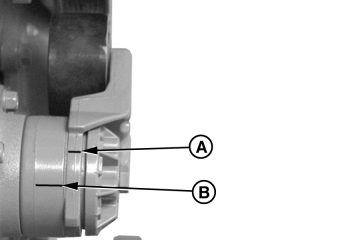

Marks on Tensioner

RG8037C
RG8037C-UN-11SEP00

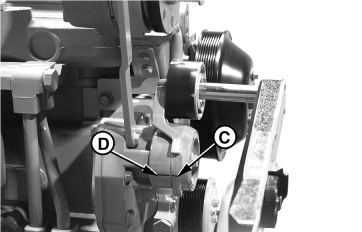

Align Marks

RG12065
RG12065-UN-28JAN02

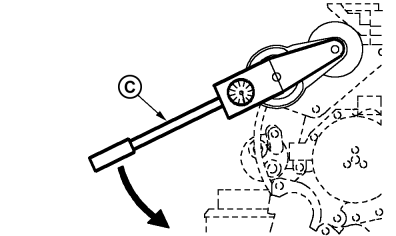

Align Torque Wrench With Pulley and Tensioner

A - Mark On Swing Arm

B - Mark On Tensioner Mounting Base

C - Torque Wrench

A belt tension gauge will not give an accurate measure of the belt tension when automatic spring tensioner is used. Measure tensioner spring tension using a torque wrench and procedure outlined below:

  1. Release tension on belt using a 1/2 in. drive breaker bar on tension arm. Remove belt from pulleys.

  2. NOTE: While belt is removed, inspect pulleys and bearings. Rotate and feel for hard turning or any unusual sounds. If pulleys or bearings need replacement, see your John Deere dealer.

    Release tension on tension arm and remove breaker bar.

  3. Put a mark (A) on swing arm of tensioner as shown.

  4. Measure 21 mm (0.83 in.) from (A) and put a mark (B) on tensioner mounting base.

  5. Install torque wrench (C) so that it is aligned with centers of pulley and tensioner. Rotate the swing arm using a torque wrench until marks (A and B) are aligned.

  6. Record torque wrench measurement and compare with specification below. Replace tensioner assembly as required.

    ItemMeasurementSpecification
    Spring TensionTorque18-22 N˙m (13-16 lb-ft)

NOTE: Threads on belt tensioner roller cap screw are LEFT-HAND threads
