Adjusting Backlighting

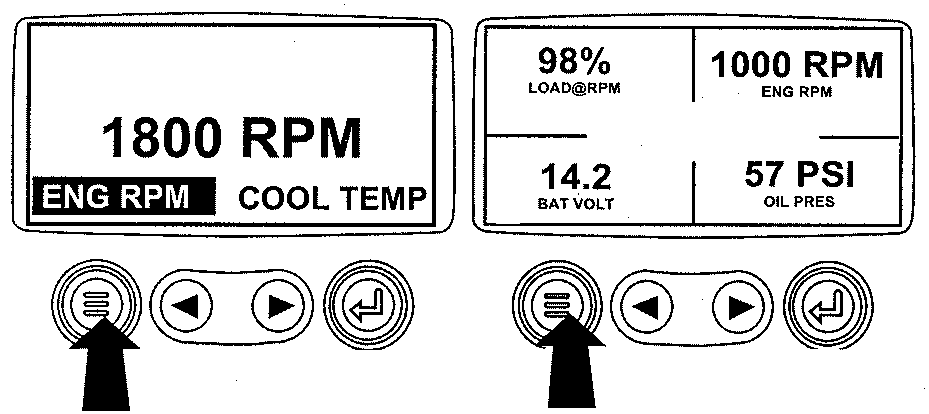

  1. RG13159
    RG13159-UN-26SEP03

    Menu Key

    Turn the key switch to the ON position. Starting at the single or four engine parameter display, press the "Menu" key.

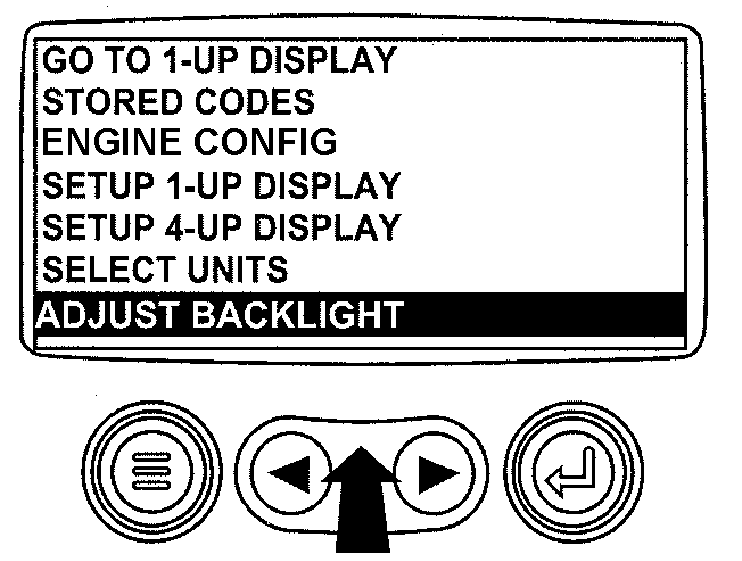

  2. RG13181
    RG13181-UN-02OCT03

    Select Adjust Backlight

    The main menu will be displayed. Use the "Arrow" keys to scroll through the menu until "Adjust Backlight" is highlighted.

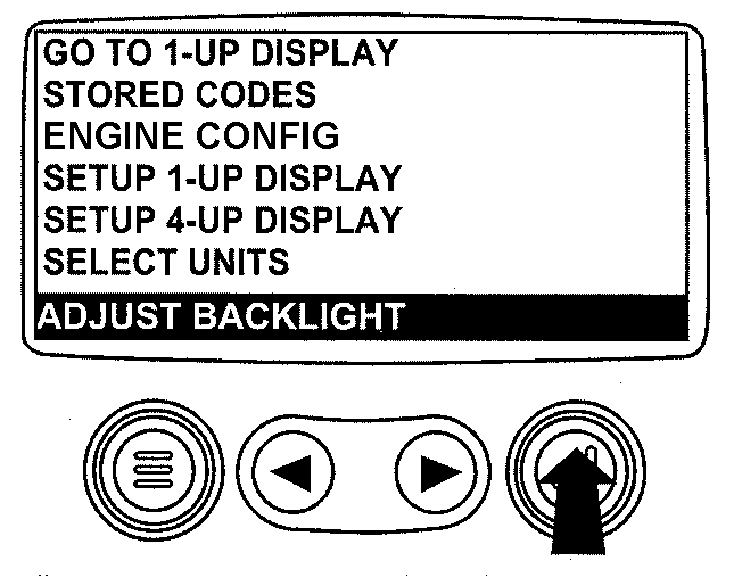

  3. RG13182
    RG13182-UN-02OCT03

    Press Enter Key

    Once the "Adjust Backlight" menu item has been highlighted, press the "Enter" key to activate the "Adjust Backlight" function.

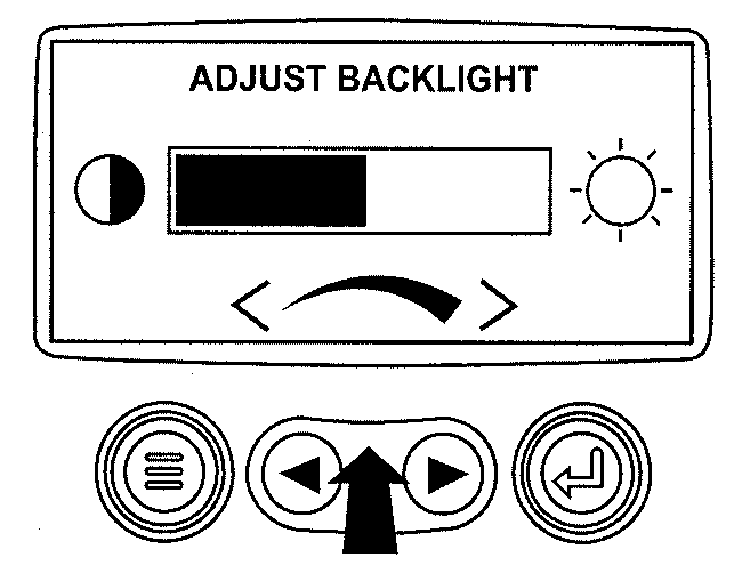

  4. RG13183
    RG13183-UN-29SEP03

    Adjust Backlight Intensity

    Use the "Arrow" keys to select the desired backlight intensity.

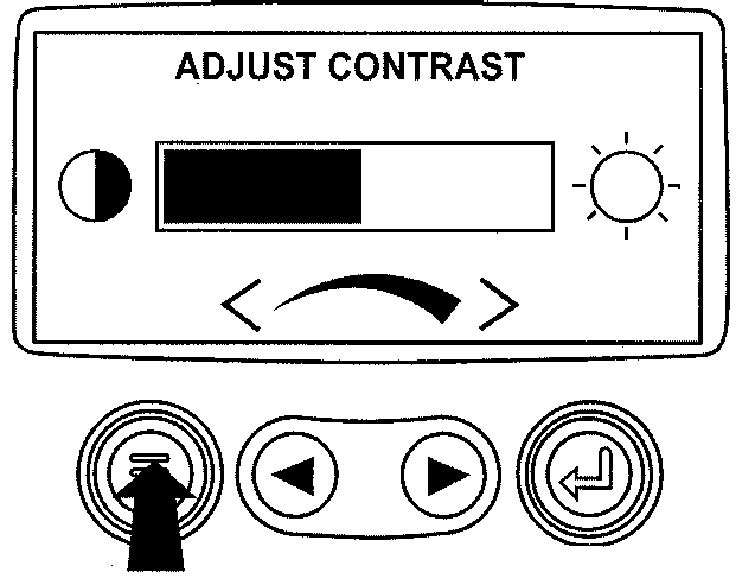

  5. RG13184
    RG13184-UN-26SEP03

    Return To Main Menu

    Press the "Menu" key to return to the main menu.


  6. RG13159
    RG13159-UN-26SEP03

    Exit Main Menu

    Press the "Menu" key to exit the main menu and return to the engine parameter display.

OURGP11,0000237-19-20060727
