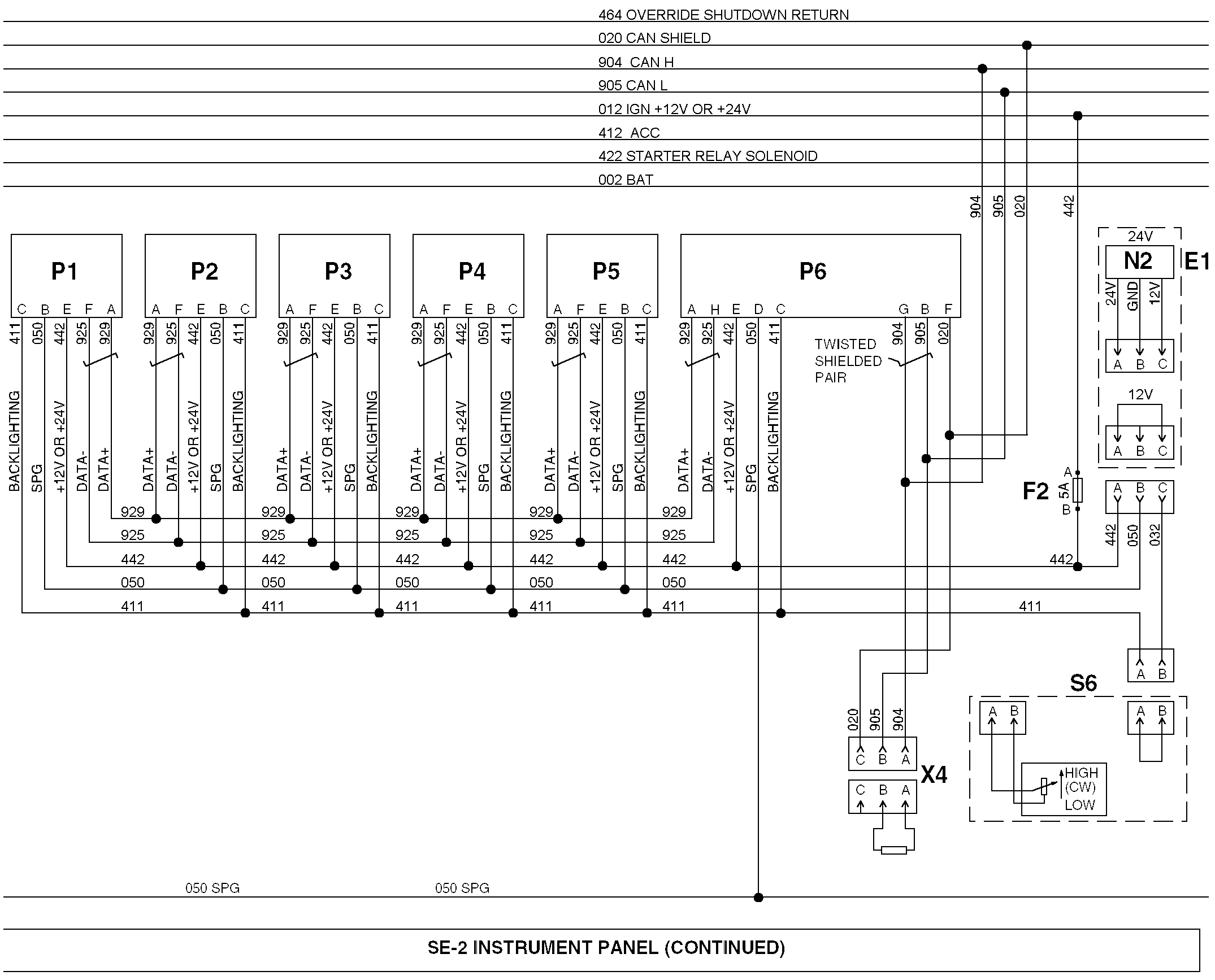

Engine Wiring Diagram (With Earlier Electronic Instrument Panel)—Continued

RG10040-19-18MAY99

B1 - Analog Throttle or Emulator

E1 - Back Light Regulator (24V) or Plug (12V)

F1 - Fuse (10 Amp) (for harness)

F2 - Fuse (5 Amp) (for instrument panel)

G1 - Alternator

K1 - Starter Relay

M1 - Starter Motor

N1 - Transient Voltage Protector

N2 - Voltage Regulator (for 24V Operation)

P1 - Optional Gauge

P2 - Optional Gauge

P3 - Oil Pressure Gauge

P4 - Coolant Temperature Gauge

P5 - Tachometer Display

P6 - Hourmeter/Diagnostic Meter

S1 - Ignition Key Switch

S2 - Speed Select Switch (Momentary)

S3 - Bump Enable Switch (Momentary)

S4 - High Low Speed Switch

S5 - Override Shutdown Switch (Momentary)

S6 - Dimmer Control or Jumper Plug

V1 - Diode

X1 - Vehicle Harness Connector

X2 - Alternator Harness

X3 - Single Point Ground

X4 - CAN Terminator

X5 - Analog Throttle Connector

X6 - Remote On-Off Plug
