Drain Water From Fuel Filter

IMPORTANT: When using BIODIESEL blends, monitor water quantity more closely in the fuel filter element. Water in the filter separator may need to be drained more frequently.

RG13253
RG13253-UN-08DEC03

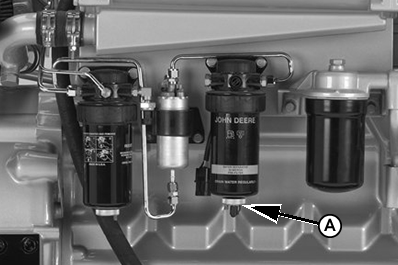

Drain Primary Fuel Filter - 6068SFM50 Shown

A - Thumb Screw

If instrument panel provides a water in fuel warning, drain water or debris from filter using the following steps.

  1. Loosen thumb screw (A) and drain water and debris into a suitable container. Tighten thumb screw.

  2. Dispose of water and debris in an environmentally safe manner.

OUOD006,0000083-19-20071016
