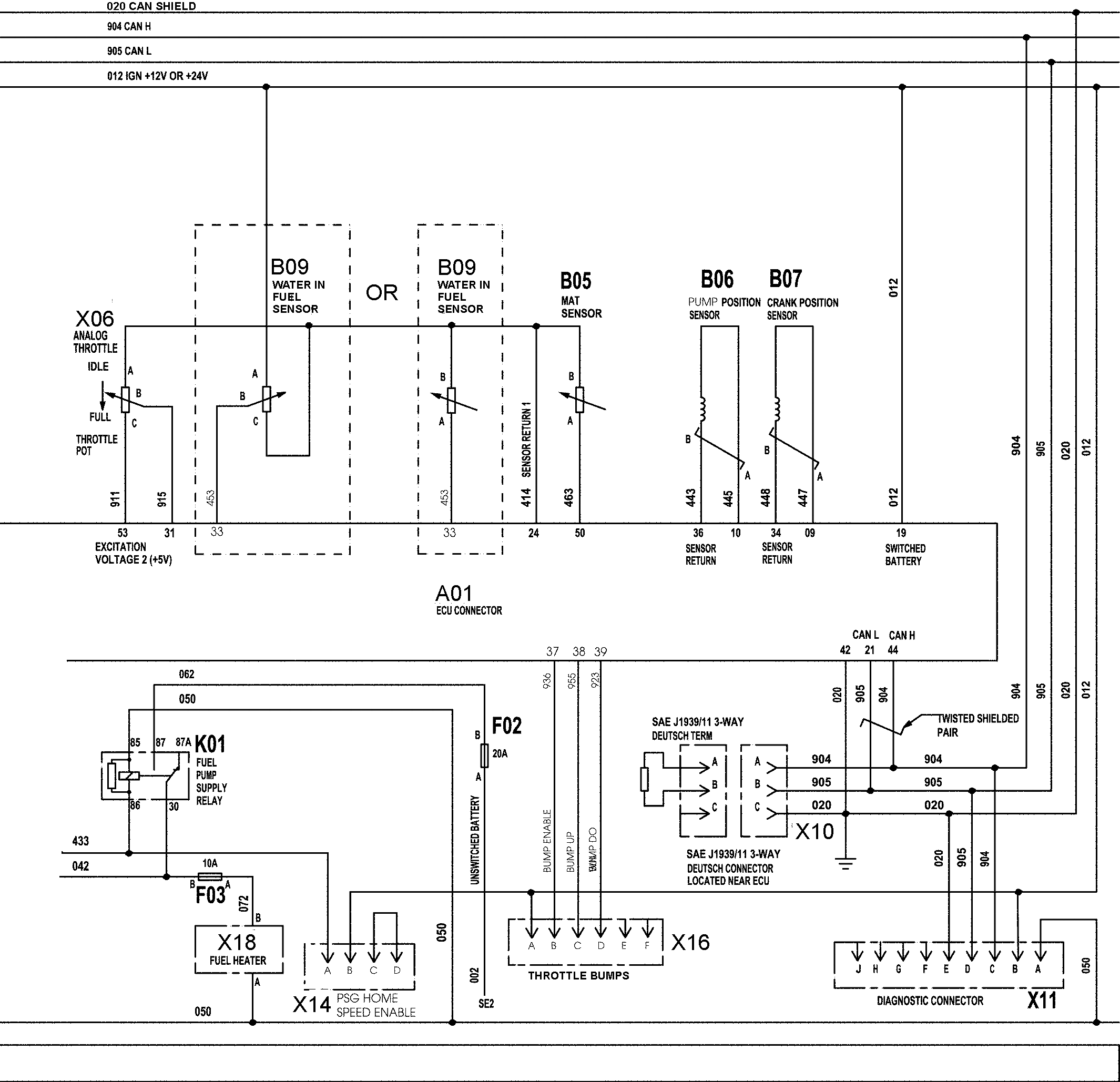

6068TFM75 and 6068SFM50 Marine Electronic Control System Wiring Diagram - Cont'd

RG13348-UN-03DEC03

A01 - ECU Connector

B02 - Oil Pressure Sensor

B03 - Fuel Pressure Sensor

B04 - Engine Coolant Temp Sensor

B05 - MAT Sensor

B06 - Pump Position Sensor

B07 - Crank Position Sensor

B08 - Loss of Coolant Sw

B09 - Water in Fuel Sensor

F02 - Fuse (20 Amp)

F03 - Fuse (10 Amp)

K01 - Fuel Pump Supply Relay

K03 - Air Heater Control Relay

K04 - Air Heater Relay

X05 - Secondary Analog Throttle

X06 - Analog Throttle

X07 - Performance Program Connector (PPC)

X08 - Ring Terminal

X09 - VP44 Rotary Pump

X10 - Deutsch Connector (Near ECU)

X11 - Diagnostic Connector

X13 - External Shutdown

X14 - PSG Home Speed Enable

X15 - Home Speed Select

X16 - Throttle Bumps

X18 - Fuel Heater

010 - Pump CAN Shield

012 - IGN +12V or +24V

020 - CAN Shield

022 - Unswitched Battery

042 - PSG Power

050 - Ground

414 - Sensor Return 1

415 - Air Heater Diagnostic

418 - Home Speed

427 - Starter Kickback

433 - PSG Enable

459 - Crank Speed Out

471 - Fuel Shutoff

504 - Pump CAN H

505 - Pump CAN L

904 - CAN H

905 - CAN L

923 - Bump Do

925 - Low Idle Droop

936 - Bump Enable

937 - Isoc. Gov

938 - Spare

955 - Bump Up
