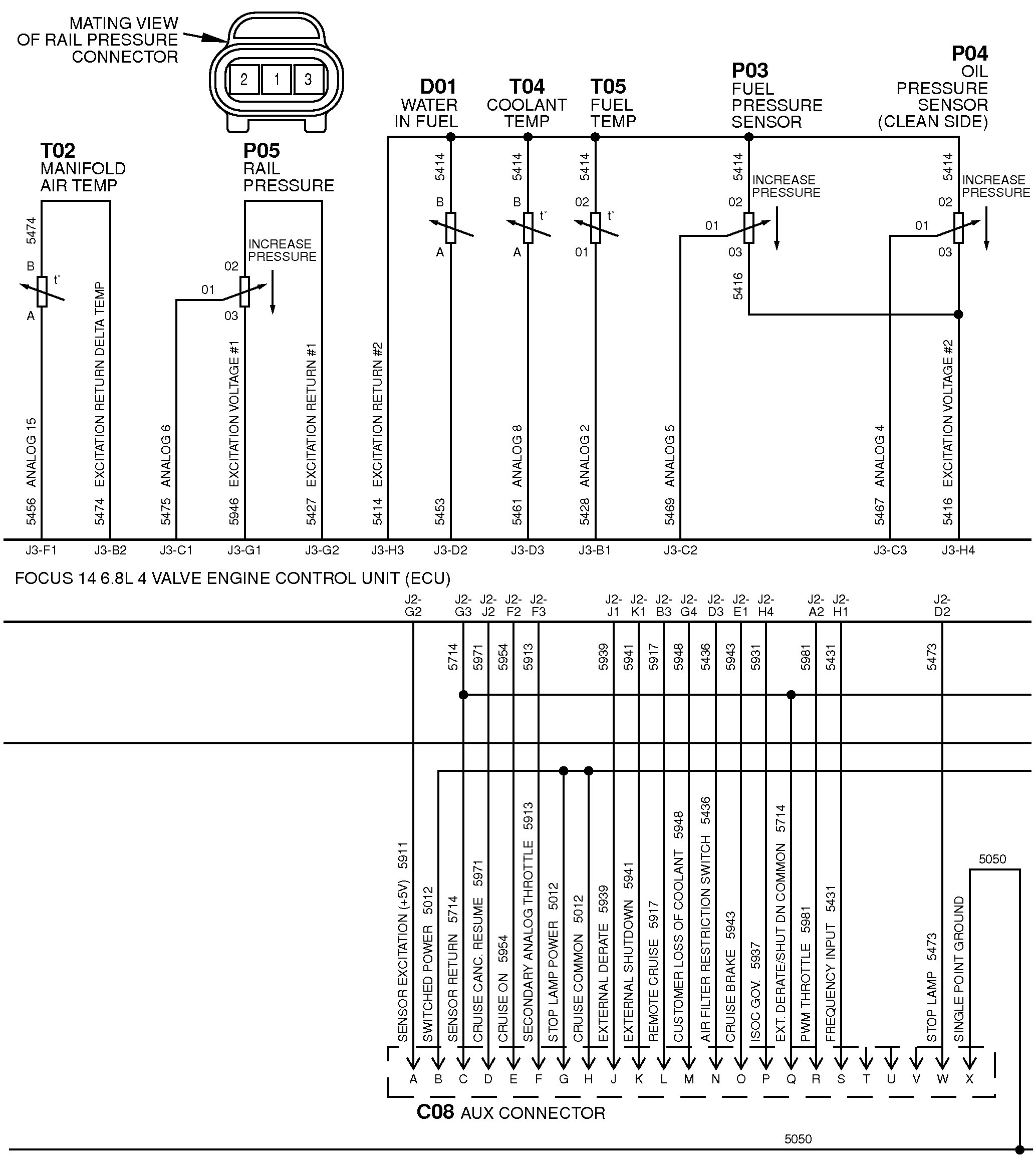

6068SFM75 / AFM75 Marine Electronic Control System Wiring Diagram - Continued

RG15321A-UN-27JAN11

C08 - Aux Connector

D01 - Water in Fuel

P03 - Fuel Pressure Sensor

P04 - Oil Pressure Sensor (Clean Side)

P05 - Rail Pressure

T02 - Manifold Air Temp

T04 - Coolant Temp

T05 - Fuel Temp

5012 - Switched Power/Stop Lamp Power/Cruise Common

5050 - Single Point Ground

5414 - Excitation Return #2

5416 - Excitation Voltage #2

5427 - Excitation Return #1

5428 - Analog 2

5431 - Frequency Input

5436 - Air Filter Restriction Switch

5456 - Analog 15

5461 - Analog 8

5467 - Analog 4

5469 - Analog 5

5473 - Stop Lamp

5474 - Excitation Return Delta Temp

5475 - Analog 6

5714 - Sensor Return/Ext. Derate/Shut Dn Common

5911 - Sensor Excitation (+5V)

5913 - Secondary Analog Throttle

5917 - Remote Cruise

5937 - Isoc. Gov

5939 - External Derate

5941 - External Shutdown

5943 - Cruise Brake

5946 - Excitation Voltage #1

5948 - Customer Loss of Coolant

5954 - Cruise On

5971 - Cruise Canc. Resume

5981 - Pwr Throttle
