Changing Engine Oil and Replacing Oil Filter

IMPORTANT: If using BIODIESEL blends greater than B20, shorten oil change interval to half the recommended service interval or monitor engine oil using OILSCAN to ensure that fuel dilution does not exceed 5%.

OILSCAN™ or OILSCAN PLUS™ is a John Deere sampling program to help you monitor machine performance and identify potential problems before they cause serious damage. OILSCAN™ or OILSCAN PLUS™ kits are available from your John Deere dealer. Oil samples should be taken prior to the oil change. Refer to instructions provided with kit.

To change engine oil and oil filter:

1.
   RG4881-UN-29NOV88

   Oil Pan Drain Plug

   Run engine approximately 5 minutes to warm up oil. Shut engine off.

---




2. Remove oil pan drain plug (arrow).

3. Drain crankcase oil from engine while warm.

   NOTE: Drain plug location may vary, depending on the application.

4.

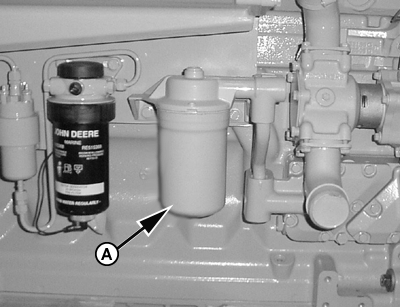

   RG12196-UN-13MAR02

   Oil Filter

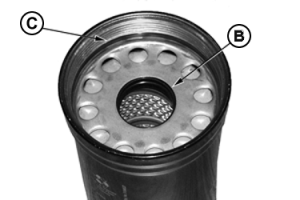

   RG11617-UN-24OCT01

   Oil Filter Seals

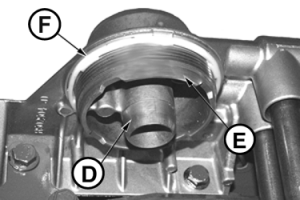

   RG11618-UN-24OCT01

   Oil Filter Mounting Header

   A - Oil Filter Element

   B - Inner Seal

   C - Outer Seal

   D - Sealing Surface On Header

   E - Sealing Surface On Header

   F - Dust Seal

   Turn filter element (A) using a suitable filter wrench to remove. Discard oil filter element.

   NOTE: Depending on engine application, oil filter may be located on either side of the engine in a high- or low-mount location.

   IMPORTANT: Filtration of oils is critical to proper lubrication. Always change filter regularly. Use filter meeting John Deere performance specifications.

---




5. Apply clean engine oil to the new filter at the inner (B) and outer (C) seals and to filter threads.

6. Wipe both sealing surfaces of the header (D, E) with a clean rag. Ensure that the notches in dust seal (F) are properly installed in the slots of the housing. Replace if damaged.

7. IMPORTANT: When installing filter element, HAND TIGHTEN only. A filter wrench may be used for REMOVAL ONLY.

   Install and tighten oil filter by hand until firmly against dust seal (F). DO NOT apply an extra 3/4 to 1-1/4 turn after gasket contact as done with standard filters.

8. Tighten drain plug to specifications.

   Item	Measurement	Specification
   Oil Pan Drain Plug With Copper Washer	Torque	70 N˙m (52 lb-ft)
   Oil Pan Drain Plug With O-Ring	Torque	50 N˙m (37 lb-ft)

9.

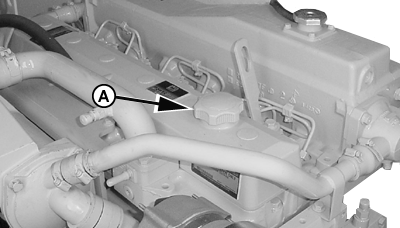

   RG12197-UN-13MAR02

   Rocker Arm Cover Oil Filler Opening

   A - Rocker Arm Cover Oil Filler Opening

   Fill engine crankcase with correct John Deere engine oil through rocker arm cover opening (A). (See Diesel Engine Oil — Tier 2 and Stage II Marine Engines in Fuels, Lubricants, and Coolant Section for determining correct engine oil.)

   To determine the correct oil fill quantity for your engine, see ENGINE CRANKCASE OIL FILL QUANTITIES in the Specifications Section of this manual.

---




10. IMPORTANT: Immediately after completing any oil change, crank engine for 30 seconds without permitting engine to start. This will help insure adequate lubrication to engine components before engine starts.

    NOTE: Crankcase oil capacity may vary slightly. ALWAYS fill crankcase within crosshatch marks on dipstick. DO NOT overfill.

    Start engine and run to check for possible leaks.

11. Stop engine and check oil level after 10 minutes. Oil level reading should be within crosshatch on dipstick.
