Replace Crankcase Vent Filter (If Equipped)

  1. RG15631
    RG15631-UN-19OCT07

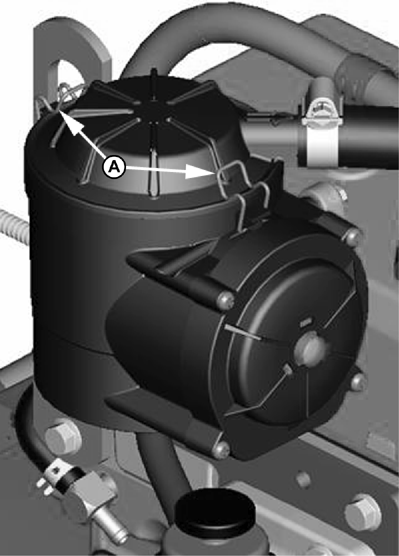

    Replace Crankcase Vent Filter

    A - Clips

    Open clips (A) and remove the crankcase vent lid.



  2. Remove old filter and discard.

  3. Install new filter into crankcase vent housing and snap into place.

  4. Install lid and lock down clips.

OUOD006,000011C-19-20071019
