Main Menu Navigation

NOTE: The engine does not need to be running to navigate the diagnostic gauge screens. If engine start up is desired, See Starting the Engine in the Engine Operation Section. All of the engine values illustrated on the diagnostic gauge indicate the engine is running.

  1. RG13159
    RG13159-UN-26SEP03

    Menu Key

    Turn the key switch to the ON position. Starting at the single or four engine parameter display, press the "Menu" key.

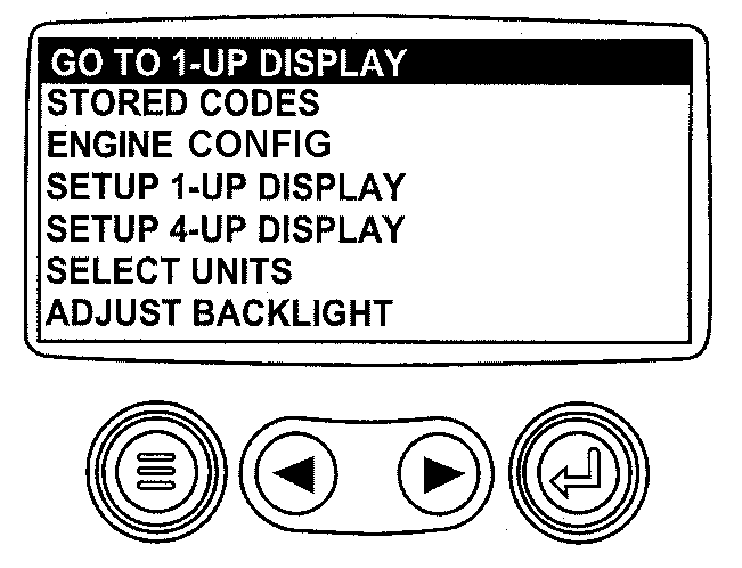

  2. RG13160
    RG13160-UN-02OCT03

    Menu Display

    The first seven items of the "Main Menu" will be displayed.


  3. RG13161
    RG13161-UN-02OCT03

    Main Menu Items

    Pressing the "Arrow" keys will scroll through the menu selections.

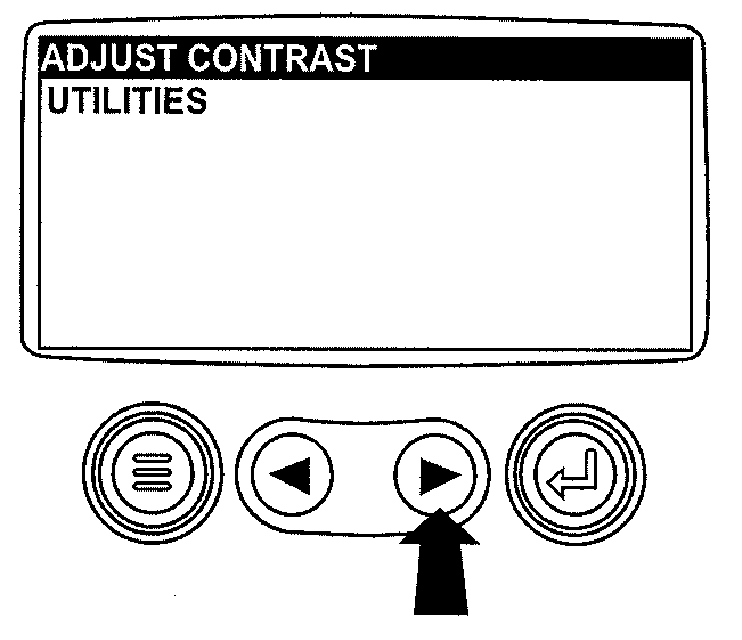

  4. RG13162
    RG13162-UN-26SEP03

    Last Items On Main Menu

    Pressing the right arrow key will scroll down to reveal the last items of "Main Menu" screen, highlighting the next item down.

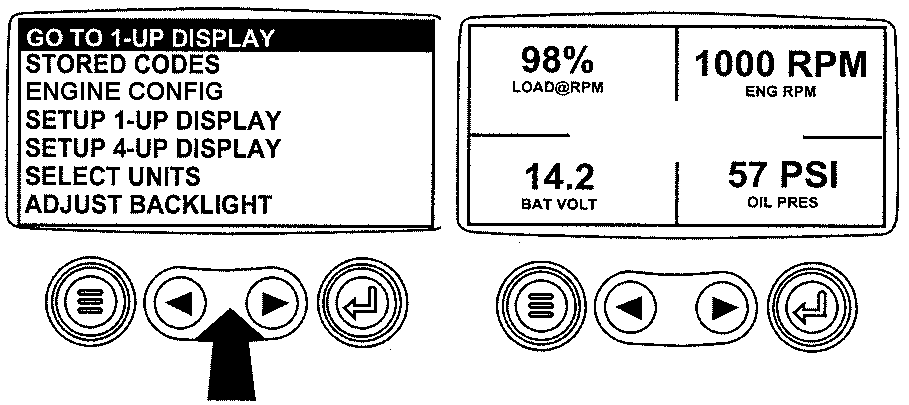

  5. RG13163
    RG13163-UN-02OCT03

    Use Arrow Buttons To Scroll / Quadrant Display

    Use the arrow keys to scroll to the desired menu item or press the "Menu Button" to exit the main menu and return to the engine parameter display.
