Engine Configuration Data

NOTE: The engine configuration data is a read only function.

NOTE: The engine does not need to be running to navigate the diagnostic gauge screens. If engine start up is desired, see Starting the Engine in the Engine Operation Section. All of the engine values illustrated on the diagnostic gauge indicate the engine is running.

  1. RG13159
    RG13159-UN-26SEP03

    Menu Key

    Turn the key switch to the ON position. Starting at the single or four engine parameter display, press the "Menu" key.


  2. RG13164
    RG13164-UN-07OCT03

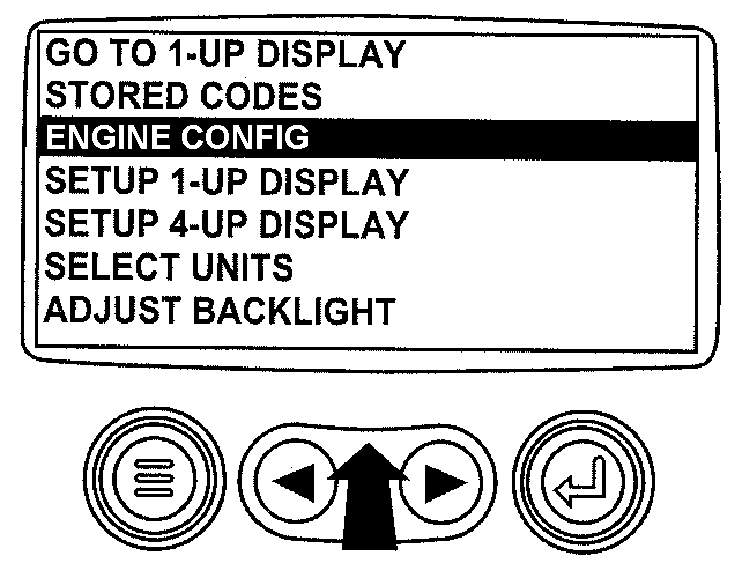

    Select Engine Configuration

    The main menu will be displayed. Use the "Arrow" keys to scroll through the menu until "Engine Config" is highlighted.


  3. RG13165
    RG13165-UN-02OCT03

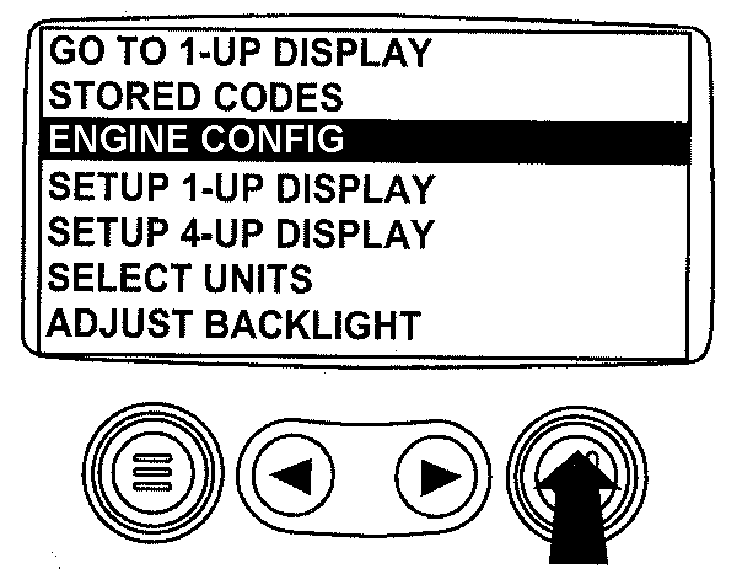

    Enter Key

    Once "Engine Config" menu item has been highlighted, press the "Enter" key to view the engine configuration data.


  4. RG13166
    RG13166-UN-29SEP03

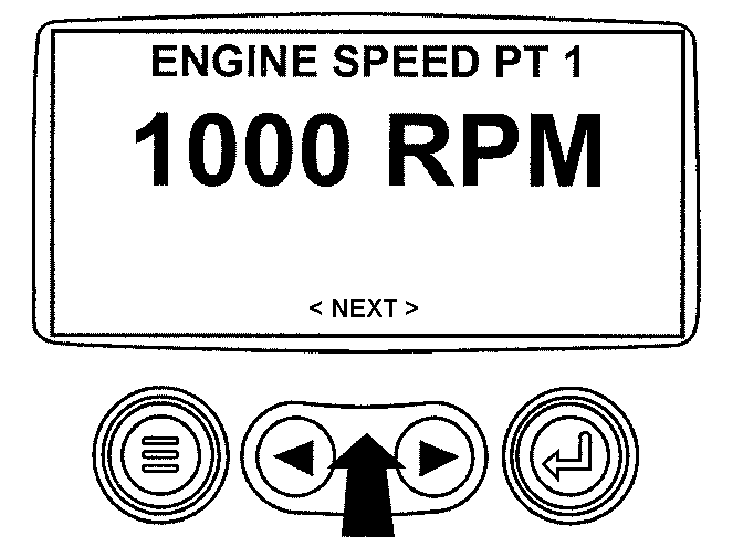

    Use Arrow Keys To Scroll

    Use the "Arrow" keys to scroll through the engine configuration data.


  5. RG13167
    RG13167-UN-29SEP03

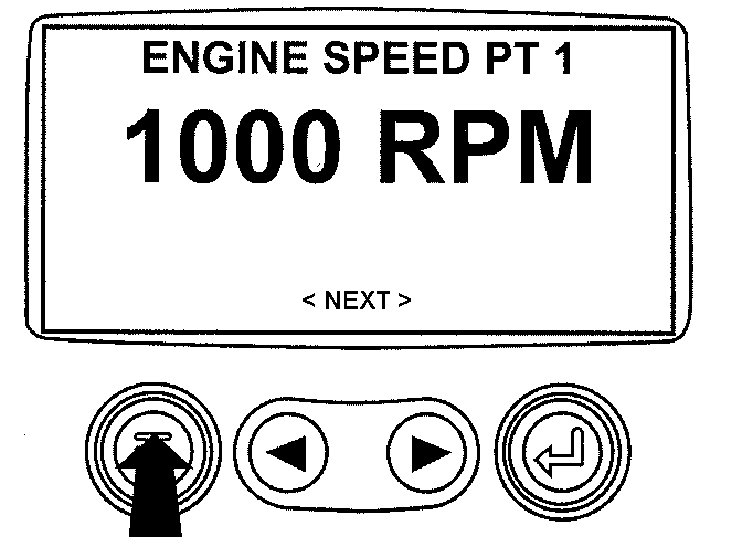

    Return To Main Menu

    Press the "Menu" key to return to the main menu.


  6. RG13159
    RG13159-UN-26SEP03

    Exit Main Menu

    Press the "Menu" key to exit the main menu and return to the engine parameter display.
